一覧

PASSENGER CAR,SEDAN
201.022 => 190
M: 102921, 102938
GM: 716212, 716216, 717411
GA: 722402
LG: 760700, 765900, 765903

Schema

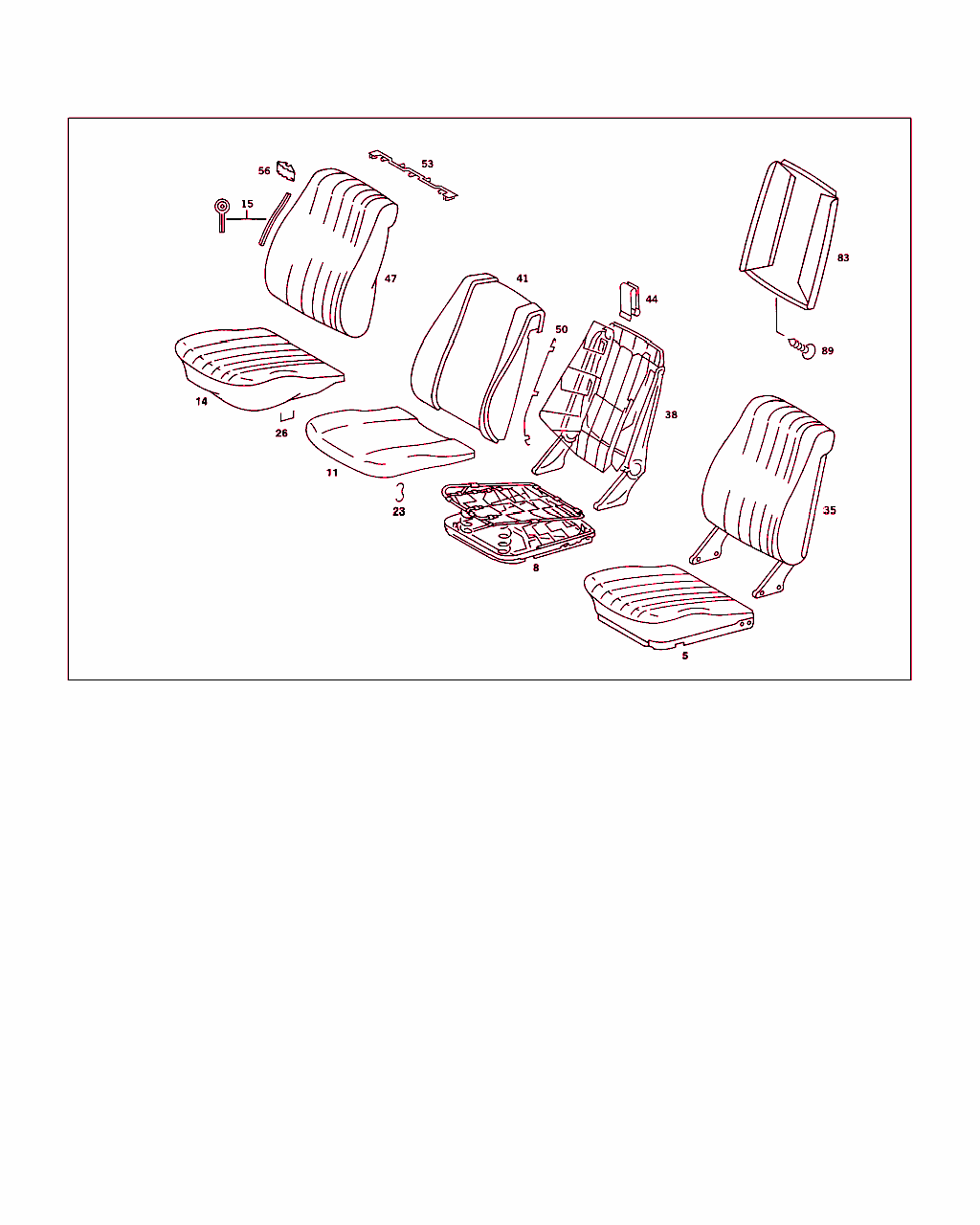

B91060000136.921104

[image]

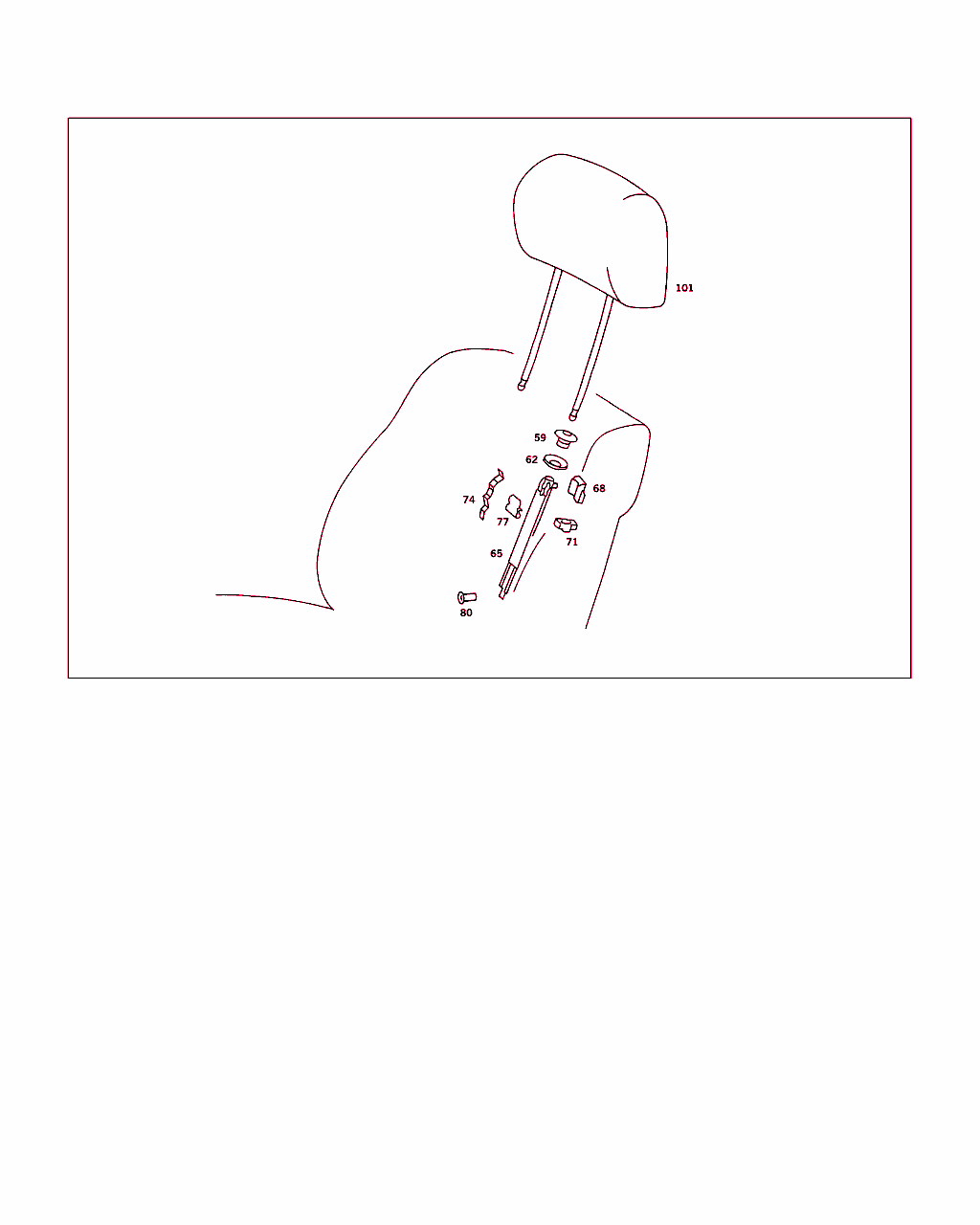

B91060000137.921104

[image]
x 番号 部品番号 名称/補足ｲﾝﾌｫﾒｰｼｮﾝ 数 ﾊﾞｰｼﾞｮﾝ
5 A 201 910 00 30
シート･クッション

ﾌｯﾄﾉｰﾄ解説
[805]
UP TO CHASSIS NEW EQUIPMENT 9/84
A 133969   NOT FOR SWITZERLAND   EXCEPT FOR
A 074339,A 078803,A 088299,A 111265,A 113528,A 113666,A 113942,A 115134,A 115371,A 116238,A 116311,A 116959,A 117022,A 118852,
A 120385,A 120951,A 121009,A 121016,A 121031,A 121142,A 122906,A 123489,A 123516,A 123643,A 123775,A 123837,A 123865,A 123916,
A 123966,A 124157,A 124252,A 124279,A 124542,A 124787,A 124877,A 125044,A 125653,A 126052,A 126523,A 126702,A 127459,A 127524,
A 127578,A 127979,A 129650,A 130761,A 133486.
  ALSO INSTALLED ON
A 133978,A 134014,A 134056,A 134078,A 134108,A 134110,A 134126,A 134136,A 134138,A 134141,A 134150,A 134185,A 134222,A 134229,
A 134239,A 134248,A 134259,A 134271,A 134285,A 134308,A 134312,A 134338,A 134355,A 134361,A 134377,A 134399,A 134410,A 134425,
A 134430,A 134446,A 134447,A 134450,A 134468,A 134482,A 134483,A 134516,A 134564,A 134649,A 134654,A 134671,A 134710,A 134745,
A 134746,A 134754,A 134761,A 134787,A 134809,A 134810,A 134875,A 134885,A 134887,A 134901,A 134907,A 134909,A 134946,A 134953,
A 134958,A 134989,A 135026,A 135033,A 135045,A 135056,A 135115,A 135124,A 135190,A 135219,A 135258,A 135299,A 135333,A 135369,
A 135410-A 135412,A 135415,A 135426,A 135430,A 135436,A 135461,A 135485,A 135509,A 135531,A 135532,A 135542,A 135548,A 135566,
A 135571,A 135585,A 135595,A 135603,A 135616,A 135618,
A 135621,A 135627,A 135686,A 135733,A 135758,A 135773,A 135814,A 135877,A 136278,A 136499,A 137246,A 137281,A 137284,A 137547,
A 139458,A 141322,A 144614.
SWITZERLAND A 109540   EXCEPT FOR  A 064727,A 102873
  ALSO INSTALLED ON
A 109592,A 109777,A 109883,A 110733,A 110885,A 119774,A 123631.
F 038702   NOT FOR AUSTRALIA,SWEDEN   EXCEPT FOR
F 032455,F 033809,F 033844,F 035842,F 036083,F 037866,F 037885,F 037904,F 037909,F 038026,F 038411,F 038666.
  ALSO INSTALLED ON
F 038704,F 038708,F 038711,F 038714,F 038728,F 038748,F 038749,F 038752,F 038754,F 038757,F 038765,F 038776,F 038806,F 038809,
F 038813,F 038818,F 038820,F 038827,F 038832,F 038838,F 038839,F 038851,F 038862,F 038866,F 038871,F 038872,F 038878,F 038882,
F 038886,F 038892,F 038899,F 038904,F 038908,F 038909,F 038911,F 038915,F 039010,F 039012,F 039014,F 039022,F 039041,F 039045,
F 039049,F 039050,F 039054,F 039057,F 039061,F 039064,F 039066,F 039073,F 039078,F 039082,F 039089,F 039104,F 039110,F 039118,
F 039129,F 039133,F 039139,F 039141,F 039146,F 039153,F 039162,F 039173,F 039189,F 039211,F 039223,F 039229,F 039259,F 039265,
F 039271,F 039282,F 039286,F 039320,F 039376,F 039417,F 039448,F 039504,F 039508,F 039510,F 039513,F 039514,F 039521,F 039526,
F 039535,F 039698,F 039705,F 039758,F 039833,F 039849,
F 039866,F 040297,F 040452,F 040617,F 040900,F 040903,F 040907,F 041316,F 042330,F 044251.
AUSTRALIA F 031505
SWEDEN F 031503

ﾌｯﾄﾉｰﾄ解説
[908]
============================================================================I
UP TO CHASSISS,SEE FOOTN.805                                                I
CODE AND COLOR NO.:                                                         I
    051   I    052   I    054   I    055   I    056   I    057   I    058   I
  BLACK   I   BLUE   I   DATE   I   CREAM  I   OLIVE  I    RED   I   GREY   I
[909]
  NO.9056 I  NO.5065 I  NO.8372 I  NO.8368 I  NO.6097 I  NO.3088 I  NO.7139 I
============================================================================I
 		002
8 A 201 910 01 22
クッション・フレーム 002
11 A 201 910 02 50
サポート

ﾌｯﾄﾉｰﾄ解説
[007]
ｼｬｼﾅﾝﾊﾞNo.以前:
A 179147
F 060759
 		002
14 A 201 910 05 46
カバー

これに変更 A 201 910 09 46 		-
14 A 201 910 09 46
カバー

ﾌｯﾄﾉｰﾄ解説
[805]
UP TO CHASSIS NEW EQUIPMENT 9/84
A 133969   NOT FOR SWITZERLAND   EXCEPT FOR
A 074339,A 078803,A 088299,A 111265,A 113528,A 113666,A 113942,A 115134,A 115371,A 116238,A 116311,A 116959,A 117022,A 118852,
A 120385,A 120951,A 121009,A 121016,A 121031,A 121142,A 122906,A 123489,A 123516,A 123643,A 123775,A 123837,A 123865,A 123916,
A 123966,A 124157,A 124252,A 124279,A 124542,A 124787,A 124877,A 125044,A 125653,A 126052,A 126523,A 126702,A 127459,A 127524,
A 127578,A 127979,A 129650,A 130761,A 133486.
  ALSO INSTALLED ON
A 133978,A 134014,A 134056,A 134078,A 134108,A 134110,A 134126,A 134136,A 134138,A 134141,A 134150,A 134185,A 134222,A 134229,
A 134239,A 134248,A 134259,A 134271,A 134285,A 134308,A 134312,A 134338,A 134355,A 134361,A 134377,A 134399,A 134410,A 134425,
A 134430,A 134446,A 134447,A 134450,A 134468,A 134482,A 134483,A 134516,A 134564,A 134649,A 134654,A 134671,A 134710,A 134745,
A 134746,A 134754,A 134761,A 134787,A 134809,A 134810,A 134875,A 134885,A 134887,A 134901,A 134907,A 134909,A 134946,A 134953,
A 134958,A 134989,A 135026,A 135033,A 135045,A 135056,A 135115,A 135124,A 135190,A 135219,A 135258,A 135299,A 135333,A 135369,
A 135410-A 135412,A 135415,A 135426,A 135430,A 135436,A 135461,A 135485,A 135509,A 135531,A 135532,A 135542,A 135548,A 135566,
A 135571,A 135585,A 135595,A 135603,A 135616,A 135618,
A 135621,A 135627,A 135686,A 135733,A 135758,A 135773,A 135814,A 135877,A 136278,A 136499,A 137246,A 137281,A 137284,A 137547,
A 139458,A 141322,A 144614.
SWITZERLAND A 109540   EXCEPT FOR  A 064727,A 102873
  ALSO INSTALLED ON
A 109592,A 109777,A 109883,A 110733,A 110885,A 119774,A 123631.
F 038702   NOT FOR AUSTRALIA,SWEDEN   EXCEPT FOR
F 032455,F 033809,F 033844,F 035842,F 036083,F 037866,F 037885,F 037904,F 037909,F 038026,F 038411,F 038666.
  ALSO INSTALLED ON
F 038704,F 038708,F 038711,F 038714,F 038728,F 038748,F 038749,F 038752,F 038754,F 038757,F 038765,F 038776,F 038806,F 038809,
F 038813,F 038818,F 038820,F 038827,F 038832,F 038838,F 038839,F 038851,F 038862,F 038866,F 038871,F 038872,F 038878,F 038882,
F 038886,F 038892,F 038899,F 038904,F 038908,F 038909,F 038911,F 038915,F 039010,F 039012,F 039014,F 039022,F 039041,F 039045,
F 039049,F 039050,F 039054,F 039057,F 039061,F 039064,F 039066,F 039073,F 039078,F 039082,F 039089,F 039104,F 039110,F 039118,
F 039129,F 039133,F 039139,F 039141,F 039146,F 039153,F 039162,F 039173,F 039189,F 039211,F 039223,F 039229,F 039259,F 039265,
F 039271,F 039282,F 039286,F 039320,F 039376,F 039417,F 039448,F 039504,F 039508,F 039510,F 039513,F 039514,F 039521,F 039526,
F 039535,F 039698,F 039705,F 039758,F 039833,F 039849,
F 039866,F 040297,F 040452,F 040617,F 040900,F 040903,F 040907,F 041316,F 042330,F 044251.
AUSTRALIA F 031505
SWEDEN F 031503

ﾌｯﾄﾉｰﾄ解説
[908]
============================================================================I
UP TO CHASSISS,SEE FOOTN.805                                                I
CODE AND COLOR NO.:                                                         I
    051   I    052   I    054   I    055   I    056   I    057   I    058   I
  BLACK   I   BLUE   I   DATE   I   CREAM  I   OLIVE  I    RED   I   GREY   I
[909]
  NO.9056 I  NO.5065 I  NO.8372 I  NO.8368 I  NO.6097 I  NO.3088 I  NO.7139 I
============================================================================I
 		002
15 A 001 987 02 30
パイプ
1600 MM

ﾌｯﾄﾉｰﾄ解説
[404]
ORDER BY THE METER
[805]
UP TO CHASSIS NEW EQUIPMENT 9/84
A 133969   NOT FOR SWITZERLAND   EXCEPT FOR
A 074339,A 078803,A 088299,A 111265,A 113528,A 113666,A 113942,A 115134,A 115371,A 116238,A 116311,A 116959,A 117022,A 118852,
A 120385,A 120951,A 121009,A 121016,A 121031,A 121142,A 122906,A 123489,A 123516,A 123643,A 123775,A 123837,A 123865,A 123916,
A 123966,A 124157,A 124252,A 124279,A 124542,A 124787,A 124877,A 125044,A 125653,A 126052,A 126523,A 126702,A 127459,A 127524,
A 127578,A 127979,A 129650,A 130761,A 133486.
  ALSO INSTALLED ON
A 133978,A 134014,A 134056,A 134078,A 134108,A 134110,A 134126,A 134136,A 134138,A 134141,A 134150,A 134185,A 134222,A 134229,
A 134239,A 134248,A 134259,A 134271,A 134285,A 134308,A 134312,A 134338,A 134355,A 134361,A 134377,A 134399,A 134410,A 134425,
A 134430,A 134446,A 134447,A 134450,A 134468,A 134482,A 134483,A 134516,A 134564,A 134649,A 134654,A 134671,A 134710,A 134745,
A 134746,A 134754,A 134761,A 134787,A 134809,A 134810,A 134875,A 134885,A 134887,A 134901,A 134907,A 134909,A 134946,A 134953,
A 134958,A 134989,A 135026,A 135033,A 135045,A 135056,A 135115,A 135124,A 135190,A 135219,A 135258,A 135299,A 135333,A 135369,
A 135410-A 135412,A 135415,A 135426,A 135430,A 135436,A 135461,A 135485,A 135509,A 135531,A 135532,A 135542,A 135548,A 135566,
A 135571,A 135585,A 135595,A 135603,A 135616,A 135618,
A 135621,A 135627,A 135686,A 135733,A 135758,A 135773,A 135814,A 135877,A 136278,A 136499,A 137246,A 137281,A 137284,A 137547,
A 139458,A 141322,A 144614.
SWITZERLAND A 109540   EXCEPT FOR  A 064727,A 102873
  ALSO INSTALLED ON
A 109592,A 109777,A 109883,A 110733,A 110885,A 119774,A 123631.
F 038702   NOT FOR AUSTRALIA,SWEDEN   EXCEPT FOR
F 032455,F 033809,F 033844,F 035842,F 036083,F 037866,F 037885,F 037904,F 037909,F 038026,F 038411,F 038666.
  ALSO INSTALLED ON
F 038704,F 038708,F 038711,F 038714,F 038728,F 038748,F 038749,F 038752,F 038754,F 038757,F 038765,F 038776,F 038806,F 038809,
F 038813,F 038818,F 038820,F 038827,F 038832,F 038838,F 038839,F 038851,F 038862,F 038866,F 038871,F 038872,F 038878,F 038882,
F 038886,F 038892,F 038899,F 038904,F 038908,F 038909,F 038911,F 038915,F 039010,F 039012,F 039014,F 039022,F 039041,F 039045,
F 039049,F 039050,F 039054,F 039057,F 039061,F 039064,F 039066,F 039073,F 039078,F 039082,F 039089,F 039104,F 039110,F 039118,
F 039129,F 039133,F 039139,F 039141,F 039146,F 039153,F 039162,F 039173,F 039189,F 039211,F 039223,F 039229,F 039259,F 039265,
F 039271,F 039282,F 039286,F 039320,F 039376,F 039417,F 039448,F 039504,F 039508,F 039510,F 039513,F 039514,F 039521,F 039526,
F 039535,F 039698,F 039705,F 039758,F 039833,F 039849,
F 039866,F 040297,F 040452,F 040617,F 040900,F 040903,F 040907,F 041316,F 042330,F 044251.
AUSTRALIA F 031505
SWEDEN F 031503

ﾌｯﾄﾉｰﾄ解説
[901]
============================================================================I
UP TO CHASSISS,SEE FOOTN.805                                                I
CODE AND COLOR NO.:                                                         I
    051   I    052   I    054   I    055   I    056   I    057   I    058   I
    151   I    152   I    154   I    155   I    156   I    157   I    158   I
    251   I    252   I    254   I    255   I    256   I    257   I    258   I
    951   I    952   I    954   I    955   I    956   I    957   I    958   I
  BLACK   I   BLUE   I   DATE   I   CREAM  I   OLIVE  I    RED   I   GREY   I
[902]
  NO.9000 I  NO.5076 I  NO.8326 I  NO.8336 I  NO.6101 I  NO.3092 I  NO.7101 I
[903]
  NO.9051 I  NO.5076 I  NO.8326 I  NO.8336 I  NO.6101 I  NO.3092 I  NO.7101 I
[904]
============================================================================I
 		002
23 A 000 984 20 61
クリップ
パッド / スプリング・ボックス 		004
23 A 000 984 20 61
クリップ
カバー / パッド 		018
26 A 003 988 04 78
クリップ
カバー・マウント、横 		006
35 A 201 910 01 32
バックレスト
左

ﾌｯﾄﾉｰﾄ解説
[805]
UP TO CHASSIS NEW EQUIPMENT 9/84
A 133969   NOT FOR SWITZERLAND   EXCEPT FOR
A 074339,A 078803,A 088299,A 111265,A 113528,A 113666,A 113942,A 115134,A 115371,A 116238,A 116311,A 116959,A 117022,A 118852,
A 120385,A 120951,A 121009,A 121016,A 121031,A 121142,A 122906,A 123489,A 123516,A 123643,A 123775,A 123837,A 123865,A 123916,
A 123966,A 124157,A 124252,A 124279,A 124542,A 124787,A 124877,A 125044,A 125653,A 126052,A 126523,A 126702,A 127459,A 127524,
A 127578,A 127979,A 129650,A 130761,A 133486.
  ALSO INSTALLED ON
A 133978,A 134014,A 134056,A 134078,A 134108,A 134110,A 134126,A 134136,A 134138,A 134141,A 134150,A 134185,A 134222,A 134229,
A 134239,A 134248,A 134259,A 134271,A 134285,A 134308,A 134312,A 134338,A 134355,A 134361,A 134377,A 134399,A 134410,A 134425,
A 134430,A 134446,A 134447,A 134450,A 134468,A 134482,A 134483,A 134516,A 134564,A 134649,A 134654,A 134671,A 134710,A 134745,
A 134746,A 134754,A 134761,A 134787,A 134809,A 134810,A 134875,A 134885,A 134887,A 134901,A 134907,A 134909,A 134946,A 134953,
A 134958,A 134989,A 135026,A 135033,A 135045,A 135056,A 135115,A 135124,A 135190,A 135219,A 135258,A 135299,A 135333,A 135369,
A 135410-A 135412,A 135415,A 135426,A 135430,A 135436,A 135461,A 135485,A 135509,A 135531,A 135532,A 135542,A 135548,A 135566,
A 135571,A 135585,A 135595,A 135603,A 135616,A 135618,
A 135621,A 135627,A 135686,A 135733,A 135758,A 135773,A 135814,A 135877,A 136278,A 136499,A 137246,A 137281,A 137284,A 137547,
A 139458,A 141322,A 144614.
SWITZERLAND A 109540   EXCEPT FOR  A 064727,A 102873
  ALSO INSTALLED ON
A 109592,A 109777,A 109883,A 110733,A 110885,A 119774,A 123631.
F 038702   NOT FOR AUSTRALIA,SWEDEN   EXCEPT FOR
F 032455,F 033809,F 033844,F 035842,F 036083,F 037866,F 037885,F 037904,F 037909,F 038026,F 038411,F 038666.
  ALSO INSTALLED ON
F 038704,F 038708,F 038711,F 038714,F 038728,F 038748,F 038749,F 038752,F 038754,F 038757,F 038765,F 038776,F 038806,F 038809,
F 038813,F 038818,F 038820,F 038827,F 038832,F 038838,F 038839,F 038851,F 038862,F 038866,F 038871,F 038872,F 038878,F 038882,
F 038886,F 038892,F 038899,F 038904,F 038908,F 038909,F 038911,F 038915,F 039010,F 039012,F 039014,F 039022,F 039041,F 039045,
F 039049,F 039050,F 039054,F 039057,F 039061,F 039064,F 039066,F 039073,F 039078,F 039082,F 039089,F 039104,F 039110,F 039118,
F 039129,F 039133,F 039139,F 039141,F 039146,F 039153,F 039162,F 039173,F 039189,F 039211,F 039223,F 039229,F 039259,F 039265,
F 039271,F 039282,F 039286,F 039320,F 039376,F 039417,F 039448,F 039504,F 039508,F 039510,F 039513,F 039514,F 039521,F 039526,
F 039535,F 039698,F 039705,F 039758,F 039833,F 039849,
F 039866,F 040297,F 040452,F 040617,F 040900,F 040903,F 040907,F 041316,F 042330,F 044251.
AUSTRALIA F 031505
SWEDEN F 031503

ﾌｯﾄﾉｰﾄ解説
[908]
============================================================================I
UP TO CHASSISS,SEE FOOTN.805                                                I
CODE AND COLOR NO.:                                                         I
    051   I    052   I    054   I    055   I    056   I    057   I    058   I
  BLACK   I   BLUE   I   DATE   I   CREAM  I   OLIVE  I    RED   I   GREY   I
[909]
  NO.9056 I  NO.5065 I  NO.8372 I  NO.8368 I  NO.6097 I  NO.3088 I  NO.7139 I
============================================================================I
 		001
35 A 201 910 02 32
バックレスト
右

ﾌｯﾄﾉｰﾄ解説
[805]
UP TO CHASSIS NEW EQUIPMENT 9/84
A 133969   NOT FOR SWITZERLAND   EXCEPT FOR
A 074339,A 078803,A 088299,A 111265,A 113528,A 113666,A 113942,A 115134,A 115371,A 116238,A 116311,A 116959,A 117022,A 118852,
A 120385,A 120951,A 121009,A 121016,A 121031,A 121142,A 122906,A 123489,A 123516,A 123643,A 123775,A 123837,A 123865,A 123916,
A 123966,A 124157,A 124252,A 124279,A 124542,A 124787,A 124877,A 125044,A 125653,A 126052,A 126523,A 126702,A 127459,A 127524,
A 127578,A 127979,A 129650,A 130761,A 133486.
  ALSO INSTALLED ON
A 133978,A 134014,A 134056,A 134078,A 134108,A 134110,A 134126,A 134136,A 134138,A 134141,A 134150,A 134185,A 134222,A 134229,
A 134239,A 134248,A 134259,A 134271,A 134285,A 134308,A 134312,A 134338,A 134355,A 134361,A 134377,A 134399,A 134410,A 134425,
A 134430,A 134446,A 134447,A 134450,A 134468,A 134482,A 134483,A 134516,A 134564,A 134649,A 134654,A 134671,A 134710,A 134745,
A 134746,A 134754,A 134761,A 134787,A 134809,A 134810,A 134875,A 134885,A 134887,A 134901,A 134907,A 134909,A 134946,A 134953,
A 134958,A 134989,A 135026,A 135033,A 135045,A 135056,A 135115,A 135124,A 135190,A 135219,A 135258,A 135299,A 135333,A 135369,
A 135410-A 135412,A 135415,A 135426,A 135430,A 135436,A 135461,A 135485,A 135509,A 135531,A 135532,A 135542,A 135548,A 135566,
A 135571,A 135585,A 135595,A 135603,A 135616,A 135618,
A 135621,A 135627,A 135686,A 135733,A 135758,A 135773,A 135814,A 135877,A 136278,A 136499,A 137246,A 137281,A 137284,A 137547,
A 139458,A 141322,A 144614.
SWITZERLAND A 109540   EXCEPT FOR  A 064727,A 102873
  ALSO INSTALLED ON
A 109592,A 109777,A 109883,A 110733,A 110885,A 119774,A 123631.
F 038702   NOT FOR AUSTRALIA,SWEDEN   EXCEPT FOR
F 032455,F 033809,F 033844,F 035842,F 036083,F 037866,F 037885,F 037904,F 037909,F 038026,F 038411,F 038666.
  ALSO INSTALLED ON
F 038704,F 038708,F 038711,F 038714,F 038728,F 038748,F 038749,F 038752,F 038754,F 038757,F 038765,F 038776,F 038806,F 038809,
F 038813,F 038818,F 038820,F 038827,F 038832,F 038838,F 038839,F 038851,F 038862,F 038866,F 038871,F 038872,F 038878,F 038882,
F 038886,F 038892,F 038899,F 038904,F 038908,F 038909,F 038911,F 038915,F 039010,F 039012,F 039014,F 039022,F 039041,F 039045,
F 039049,F 039050,F 039054,F 039057,F 039061,F 039064,F 039066,F 039073,F 039078,F 039082,F 039089,F 039104,F 039110,F 039118,
F 039129,F 039133,F 039139,F 039141,F 039146,F 039153,F 039162,F 039173,F 039189,F 039211,F 039223,F 039229,F 039259,F 039265,
F 039271,F 039282,F 039286,F 039320,F 039376,F 039417,F 039448,F 039504,F 039508,F 039510,F 039513,F 039514,F 039521,F 039526,
F 039535,F 039698,F 039705,F 039758,F 039833,F 039849,
F 039866,F 040297,F 040452,F 040617,F 040900,F 040903,F 040907,F 041316,F 042330,F 044251.
AUSTRALIA F 031505
SWEDEN F 031503

ﾌｯﾄﾉｰﾄ解説
[908]
============================================================================I
UP TO CHASSISS,SEE FOOTN.805                                                I
CODE AND COLOR NO.:                                                         I
    051   I    052   I    054   I    055   I    056   I    057   I    058   I
  BLACK   I   BLUE   I   DATE   I   CREAM  I   OLIVE  I    RED   I   GREY   I
[909]
  NO.9056 I  NO.5065 I  NO.8372 I  NO.8368 I  NO.6097 I  NO.3088 I  NO.7139 I
============================================================================I
 		001
38 A 201 910 03 34
バックレスト・フレーム
左 		001
38 A 201 910 04 34
バックレスト・フレーム
右 		001
41 A 201 910 06 16
サポート

これに変更 A 201 910 12 16 		-
41 A 201 910 12 16
サポート 002
44 A 126 988 05 78
クリップ 006
47 A 201 910 05 47
カバー

これに変更 A 201 910 00 47 		-
47 A 201 910 00 47
カバー

ﾌｯﾄﾉｰﾄ解説
[805]
UP TO CHASSIS NEW EQUIPMENT 9/84
A 133969   NOT FOR SWITZERLAND   EXCEPT FOR
A 074339,A 078803,A 088299,A 111265,A 113528,A 113666,A 113942,A 115134,A 115371,A 116238,A 116311,A 116959,A 117022,A 118852,
A 120385,A 120951,A 121009,A 121016,A 121031,A 121142,A 122906,A 123489,A 123516,A 123643,A 123775,A 123837,A 123865,A 123916,
A 123966,A 124157,A 124252,A 124279,A 124542,A 124787,A 124877,A 125044,A 125653,A 126052,A 126523,A 126702,A 127459,A 127524,
A 127578,A 127979,A 129650,A 130761,A 133486.
  ALSO INSTALLED ON
A 133978,A 134014,A 134056,A 134078,A 134108,A 134110,A 134126,A 134136,A 134138,A 134141,A 134150,A 134185,A 134222,A 134229,
A 134239,A 134248,A 134259,A 134271,A 134285,A 134308,A 134312,A 134338,A 134355,A 134361,A 134377,A 134399,A 134410,A 134425,
A 134430,A 134446,A 134447,A 134450,A 134468,A 134482,A 134483,A 134516,A 134564,A 134649,A 134654,A 134671,A 134710,A 134745,
A 134746,A 134754,A 134761,A 134787,A 134809,A 134810,A 134875,A 134885,A 134887,A 134901,A 134907,A 134909,A 134946,A 134953,
A 134958,A 134989,A 135026,A 135033,A 135045,A 135056,A 135115,A 135124,A 135190,A 135219,A 135258,A 135299,A 135333,A 135369,
A 135410-A 135412,A 135415,A 135426,A 135430,A 135436,A 135461,A 135485,A 135509,A 135531,A 135532,A 135542,A 135548,A 135566,
A 135571,A 135585,A 135595,A 135603,A 135616,A 135618,
A 135621,A 135627,A 135686,A 135733,A 135758,A 135773,A 135814,A 135877,A 136278,A 136499,A 137246,A 137281,A 137284,A 137547,
A 139458,A 141322,A 144614.
SWITZERLAND A 109540   EXCEPT FOR  A 064727,A 102873
  ALSO INSTALLED ON
A 109592,A 109777,A 109883,A 110733,A 110885,A 119774,A 123631.
F 038702   NOT FOR AUSTRALIA,SWEDEN   EXCEPT FOR
F 032455,F 033809,F 033844,F 035842,F 036083,F 037866,F 037885,F 037904,F 037909,F 038026,F 038411,F 038666.
  ALSO INSTALLED ON
F 038704,F 038708,F 038711,F 038714,F 038728,F 038748,F 038749,F 038752,F 038754,F 038757,F 038765,F 038776,F 038806,F 038809,
F 038813,F 038818,F 038820,F 038827,F 038832,F 038838,F 038839,F 038851,F 038862,F 038866,F 038871,F 038872,F 038878,F 038882,
F 038886,F 038892,F 038899,F 038904,F 038908,F 038909,F 038911,F 038915,F 039010,F 039012,F 039014,F 039022,F 039041,F 039045,
F 039049,F 039050,F 039054,F 039057,F 039061,F 039064,F 039066,F 039073,F 039078,F 039082,F 039089,F 039104,F 039110,F 039118,
F 039129,F 039133,F 039139,F 039141,F 039146,F 039153,F 039162,F 039173,F 039189,F 039211,F 039223,F 039229,F 039259,F 039265,
F 039271,F 039282,F 039286,F 039320,F 039376,F 039417,F 039448,F 039504,F 039508,F 039510,F 039513,F 039514,F 039521,F 039526,
F 039535,F 039698,F 039705,F 039758,F 039833,F 039849,
F 039866,F 040297,F 040452,F 040617,F 040900,F 040903,F 040907,F 041316,F 042330,F 044251.
AUSTRALIA F 031505
SWEDEN F 031503

ﾌｯﾄﾉｰﾄ解説
[908]
============================================================================I
UP TO CHASSISS,SEE FOOTN.805                                                I
CODE AND COLOR NO.:                                                         I
    051   I    052   I    054   I    055   I    056   I    057   I    058   I
  BLACK   I   BLUE   I   DATE   I   CREAM  I   OLIVE  I    RED   I   GREY   I
[909]
  NO.9056 I  NO.5065 I  NO.8372 I  NO.8368 I  NO.6097 I  NO.3088 I  NO.7139 I
============================================================================I
 		002
50 A 201 914 00 29
ブラケット
カバー・マウント、縦 		004
53 A 123 914 04 29
ブラケット
カバー・マウント、横 		002
56 A 003 988 01 78
クランピング・ブラケット
カバー・マウント、縦 		016
59 A 126 988 00 82
アイ
上部、運転席バックレストのヘッドレスト 		004
62 A 126 990 12 40
ウインドウ
下部、運転席バックレストのヘッドレスト 		004
65 A 107 970 01 15
レール
左、ヘッドレスト用 		002
65 A 107 970 02 15
ガイド・レール
右、ヘッドレスト用 		002
68 A 115 975 00 24
スライダ 002
71 A 115 975 00 23
ブレーキ・ピース 004
74 A 115 975 01 37
スプリング

これに変更 A 124 975 01 37 		-
74 A 124 975 01 37
スプリング 002
74 A 115 975 02 37
スプリング

これに変更 A 124 975 01 37 		-
74 A 124 975 01 37
スプリング

ﾌｯﾄﾉｰﾄ解説
[011]
EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS
A 153269
F 050579
 		002
74 A 124 975 01 37
スプリング 002
77 A 115 988 04 78
クリップ 008
80 N 910001 004105
リベット
ガイド・レール / 運転席バックレスト・フレーム 		004
83 A 201 910 01 39
パネル

これに変更 A 201 910 08 39 		-
83 A 201 910 15 39
パネル

これに変更 A 201 910 08 39 		-
83 A 201 910 08 39
カバー
バックレスト

ﾌｯﾄﾉｰﾄ解説
[805]
UP TO CHASSIS NEW EQUIPMENT 9/84
A 133969   NOT FOR SWITZERLAND   EXCEPT FOR
A 074339,A 078803,A 088299,A 111265,A 113528,A 113666,A 113942,A 115134,A 115371,A 116238,A 116311,A 116959,A 117022,A 118852,
A 120385,A 120951,A 121009,A 121016,A 121031,A 121142,A 122906,A 123489,A 123516,A 123643,A 123775,A 123837,A 123865,A 123916,
A 123966,A 124157,A 124252,A 124279,A 124542,A 124787,A 124877,A 125044,A 125653,A 126052,A 126523,A 126702,A 127459,A 127524,
A 127578,A 127979,A 129650,A 130761,A 133486.
  ALSO INSTALLED ON
A 133978,A 134014,A 134056,A 134078,A 134108,A 134110,A 134126,A 134136,A 134138,A 134141,A 134150,A 134185,A 134222,A 134229,
A 134239,A 134248,A 134259,A 134271,A 134285,A 134308,A 134312,A 134338,A 134355,A 134361,A 134377,A 134399,A 134410,A 134425,
A 134430,A 134446,A 134447,A 134450,A 134468,A 134482,A 134483,A 134516,A 134564,A 134649,A 134654,A 134671,A 134710,A 134745,
A 134746,A 134754,A 134761,A 134787,A 134809,A 134810,A 134875,A 134885,A 134887,A 134901,A 134907,A 134909,A 134946,A 134953,
A 134958,A 134989,A 135026,A 135033,A 135045,A 135056,A 135115,A 135124,A 135190,A 135219,A 135258,A 135299,A 135333,A 135369,
A 135410-A 135412,A 135415,A 135426,A 135430,A 135436,A 135461,A 135485,A 135509,A 135531,A 135532,A 135542,A 135548,A 135566,
A 135571,A 135585,A 135595,A 135603,A 135616,A 135618,
A 135621,A 135627,A 135686,A 135733,A 135758,A 135773,A 135814,A 135877,A 136278,A 136499,A 137246,A 137281,A 137284,A 137547,
A 139458,A 141322,A 144614.
SWITZERLAND A 109540   EXCEPT FOR  A 064727,A 102873
  ALSO INSTALLED ON
A 109592,A 109777,A 109883,A 110733,A 110885,A 119774,A 123631.
F 038702   NOT FOR AUSTRALIA,SWEDEN   EXCEPT FOR
F 032455,F 033809,F 033844,F 035842,F 036083,F 037866,F 037885,F 037904,F 037909,F 038026,F 038411,F 038666.
  ALSO INSTALLED ON
F 038704,F 038708,F 038711,F 038714,F 038728,F 038748,F 038749,F 038752,F 038754,F 038757,F 038765,F 038776,F 038806,F 038809,
F 038813,F 038818,F 038820,F 038827,F 038832,F 038838,F 038839,F 038851,F 038862,F 038866,F 038871,F 038872,F 038878,F 038882,
F 038886,F 038892,F 038899,F 038904,F 038908,F 038909,F 038911,F 038915,F 039010,F 039012,F 039014,F 039022,F 039041,F 039045,
F 039049,F 039050,F 039054,F 039057,F 039061,F 039064,F 039066,F 039073,F 039078,F 039082,F 039089,F 039104,F 039110,F 039118,
F 039129,F 039133,F 039139,F 039141,F 039146,F 039153,F 039162,F 039173,F 039189,F 039211,F 039223,F 039229,F 039259,F 039265,
F 039271,F 039282,F 039286,F 039320,F 039376,F 039417,F 039448,F 039504,F 039508,F 039510,F 039513,F 039514,F 039521,F 039526,
F 039535,F 039698,F 039705,F 039758,F 039833,F 039849,
F 039866,F 040297,F 040452,F 040617,F 040900,F 040903,F 040907,F 041316,F 042330,F 044251.
AUSTRALIA F 031505
SWEDEN F 031503

ﾌｯﾄﾉｰﾄ解説
[914]
============================================================================I
UP TO CHASSISS,SEE FOOTN.805                                                I
CODE AND COLOR NO.:                                                         I
    051   I    052   I    054   I    055   I    056   I    057   I    058   I
    151   I    152   I    154   I    155   I    156   I    157   I    158   I
    951   I    952   I    954   I    955   I    956   I    957   I    958   I
  BLACK   I   BLUE   I   DATE   I   CREAM  I   OLIVE  I    RED   I   GREY   I
[915]
  NO.9045 I  NO.5070 I  NO.8320 I  NO.8330 I  NO.6093 I  NO.3084 I  NO.7095 I
============================================================================I
 		002
89 A 000 990 98 36
ボルト

これに変更 A 000 984 65 29 		-
89 A 000 984 65 29
ボルト
パネル / 運転席バックレスト 		004
----- A 201 970 03 50
ヘッドレスト

これに変更 A 201 970 08 50

ﾌｯﾄﾉｰﾄ解説
[019]
EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS
A 039331
F 001493
 		-
----- A 201 970 08 50
ヘッドレスト

これに変更 A 201 970 13 50

ﾌｯﾄﾉｰﾄ解説
[020]
EXHAUST STOCK OF OLD PART NUMBERS FIRST FROM CHASSIS: 1/84-A 070026,F 033852
 		-
101 A 201 970 13 50
ヘッドレスト

ﾌｯﾄﾉｰﾄ解説
[805]
UP TO CHASSIS NEW EQUIPMENT 9/84
A 133969   NOT FOR SWITZERLAND   EXCEPT FOR
A 074339,A 078803,A 088299,A 111265,A 113528,A 113666,A 113942,A 115134,A 115371,A 116238,A 116311,A 116959,A 117022,A 118852,
A 120385,A 120951,A 121009,A 121016,A 121031,A 121142,A 122906,A 123489,A 123516,A 123643,A 123775,A 123837,A 123865,A 123916,
A 123966,A 124157,A 124252,A 124279,A 124542,A 124787,A 124877,A 125044,A 125653,A 126052,A 126523,A 126702,A 127459,A 127524,
A 127578,A 127979,A 129650,A 130761,A 133486.
  ALSO INSTALLED ON
A 133978,A 134014,A 134056,A 134078,A 134108,A 134110,A 134126,A 134136,A 134138,A 134141,A 134150,A 134185,A 134222,A 134229,
A 134239,A 134248,A 134259,A 134271,A 134285,A 134308,A 134312,A 134338,A 134355,A 134361,A 134377,A 134399,A 134410,A 134425,
A 134430,A 134446,A 134447,A 134450,A 134468,A 134482,A 134483,A 134516,A 134564,A 134649,A 134654,A 134671,A 134710,A 134745,
A 134746,A 134754,A 134761,A 134787,A 134809,A 134810,A 134875,A 134885,A 134887,A 134901,A 134907,A 134909,A 134946,A 134953,
A 134958,A 134989,A 135026,A 135033,A 135045,A 135056,A 135115,A 135124,A 135190,A 135219,A 135258,A 135299,A 135333,A 135369,
A 135410-A 135412,A 135415,A 135426,A 135430,A 135436,A 135461,A 135485,A 135509,A 135531,A 135532,A 135542,A 135548,A 135566,
A 135571,A 135585,A 135595,A 135603,A 135616,A 135618,
A 135621,A 135627,A 135686,A 135733,A 135758,A 135773,A 135814,A 135877,A 136278,A 136499,A 137246,A 137281,A 137284,A 137547,
A 139458,A 141322,A 144614.
SWITZERLAND A 109540   EXCEPT FOR  A 064727,A 102873
  ALSO INSTALLED ON
A 109592,A 109777,A 109883,A 110733,A 110885,A 119774,A 123631.
F 038702   NOT FOR AUSTRALIA,SWEDEN   EXCEPT FOR
F 032455,F 033809,F 033844,F 035842,F 036083,F 037866,F 037885,F 037904,F 037909,F 038026,F 038411,F 038666.
  ALSO INSTALLED ON
F 038704,F 038708,F 038711,F 038714,F 038728,F 038748,F 038749,F 038752,F 038754,F 038757,F 038765,F 038776,F 038806,F 038809,
F 038813,F 038818,F 038820,F 038827,F 038832,F 038838,F 038839,F 038851,F 038862,F 038866,F 038871,F 038872,F 038878,F 038882,
F 038886,F 038892,F 038899,F 038904,F 038908,F 038909,F 038911,F 038915,F 039010,F 039012,F 039014,F 039022,F 039041,F 039045,
F 039049,F 039050,F 039054,F 039057,F 039061,F 039064,F 039066,F 039073,F 039078,F 039082,F 039089,F 039104,F 039110,F 039118,
F 039129,F 039133,F 039139,F 039141,F 039146,F 039153,F 039162,F 039173,F 039189,F 039211,F 039223,F 039229,F 039259,F 039265,
F 039271,F 039282,F 039286,F 039320,F 039376,F 039417,F 039448,F 039504,F 039508,F 039510,F 039513,F 039514,F 039521,F 039526,
F 039535,F 039698,F 039705,F 039758,F 039833,F 039849,
F 039866,F 040297,F 040452,F 040617,F 040900,F 040903,F 040907,F 041316,F 042330,F 044251.
AUSTRALIA F 031505
SWEDEN F 031503

ﾌｯﾄﾉｰﾄ解説
[908]
============================================================================I
UP TO CHASSISS,SEE FOOTN.805                                                I
CODE AND COLOR NO.:                                                         I
    051   I    052   I    054   I    055   I    056   I    057   I    058   I
  BLACK   I   BLUE   I   DATE   I   CREAM  I   OLIVE  I    RED   I   GREY   I
[909]
  NO.9056 I  NO.5065 I  NO.8372 I  NO.8368 I  NO.6097 I  NO.3088 I  NO.7139 I
============================================================================I
 		002
