一覧

ステーション・ワゴン 車台番号 A 962231 以前 (コード 809) 装備
210.274 => E 55 AMG JAPAN
M: 113980
GA: 722636

Schema

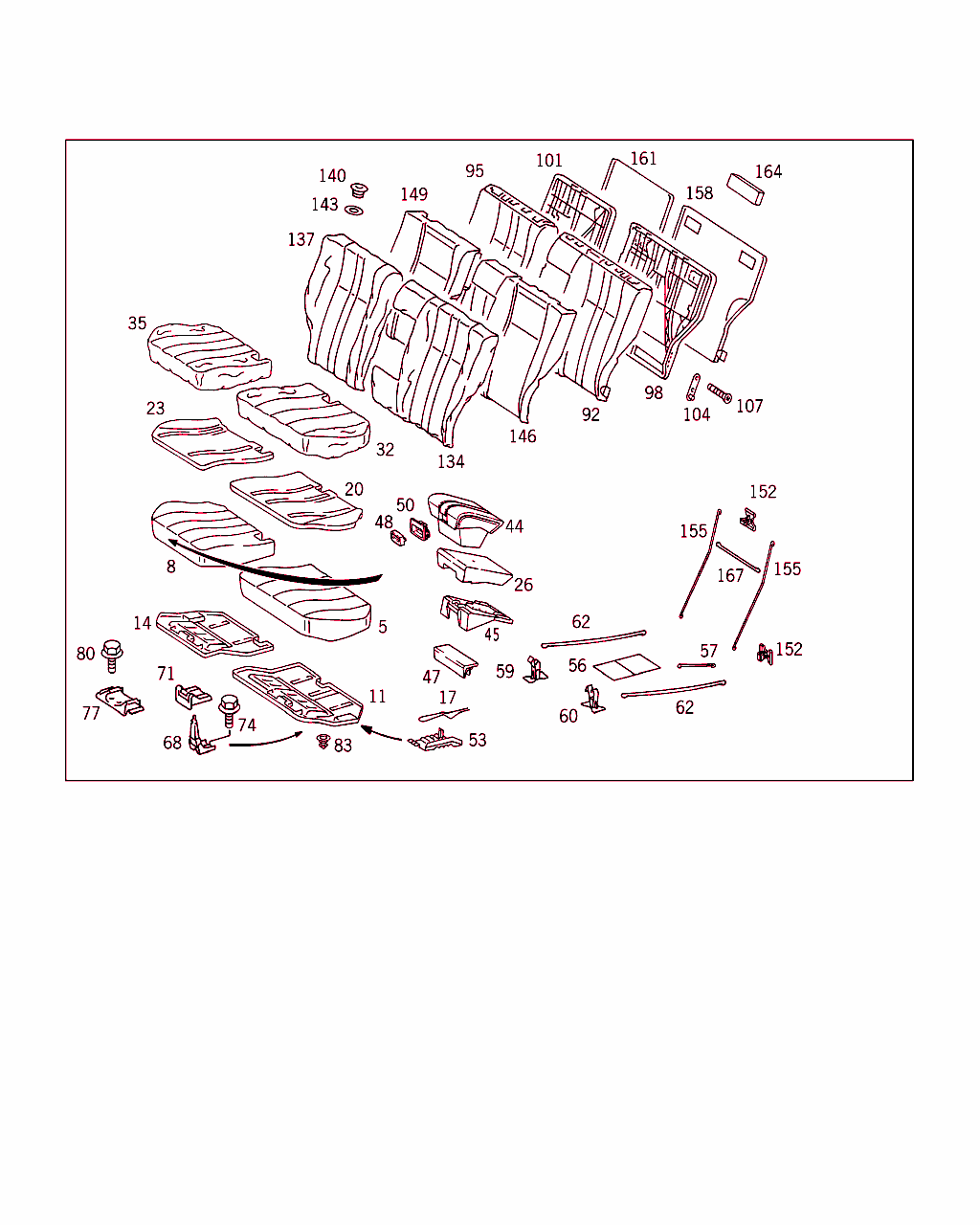

B92015000087.071122

[image]

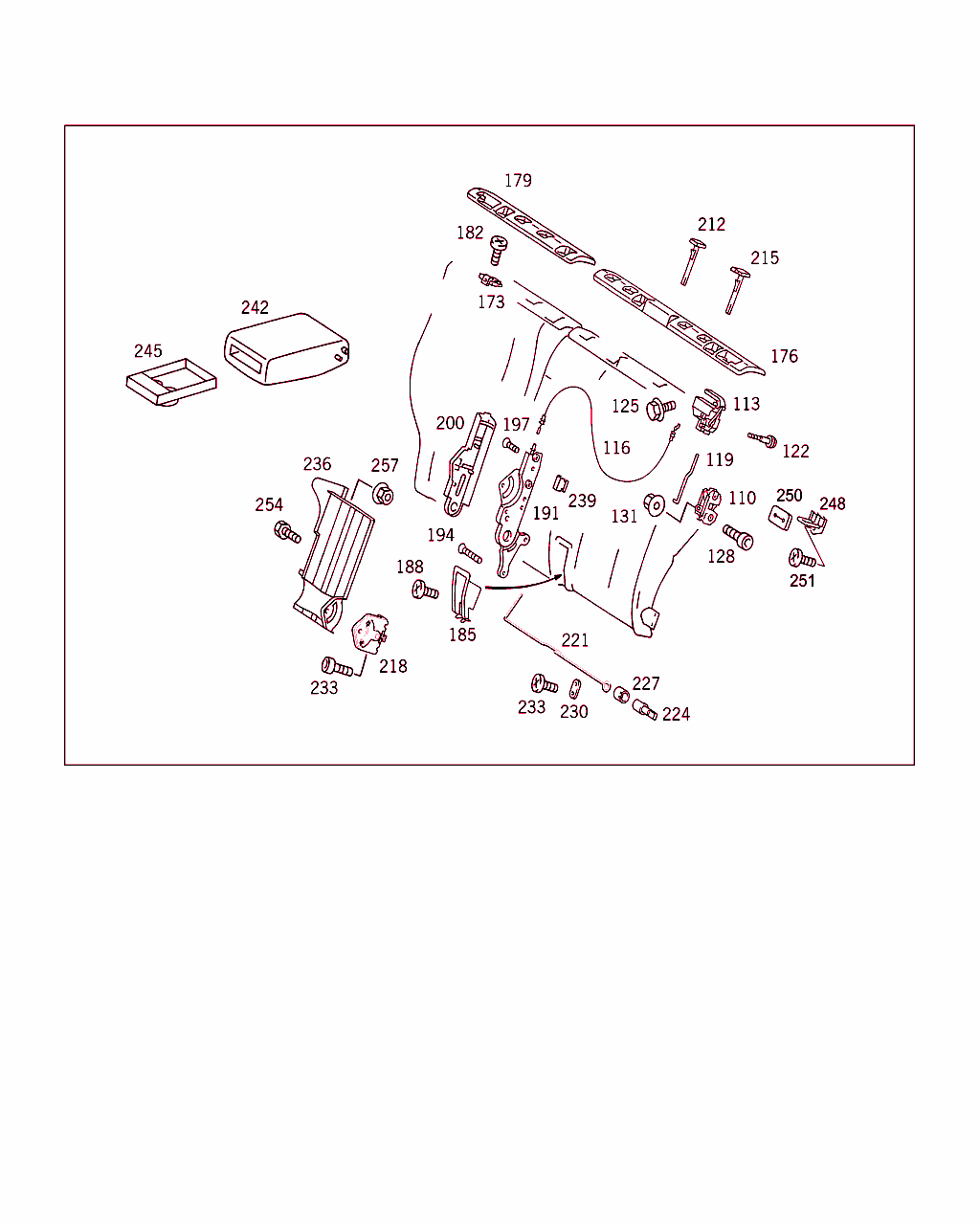

B92015000088.120326

[image]
x 番号 部品番号 名称/補足ｲﾝﾌｫﾒｰｼｮﾝ 数 ﾊﾞｰｼﾞｮﾝ
5 A 210 920 79 21
シート･クッション
レザー、左
AMG

ﾌｯﾄﾉｰﾄ解説
[950]
=================================================================I
コードおよび色番号:                                                     I
    581   I    582   I    ...   I    586   I    ...   I    588   I
 アンスラサイトI　　　  青色　　　  I    ...   I   緑色　　　  I    ...   I   灰色　　   I
[951]
 NO.9B87  I NO.5B88  I .......  I NO.9B86  I .......  I NO.7D61  I
[952]
 NO.7C45  I NO.7C45  I .......  I NO.7C45  I .......  I NO.7C45  I
[953]
 NO.9B51  I NO.9B51  I .......  I NO.9B51  I .......  I NO.9B51  I
[954]
 NO.9B95  I NO.9B95  I .......  I NO.9B95  I .......  I NO.9B95  I
[955]
 NO.9B95  I NO.9B95  I .......  I NO.9B95  I .......  I NO.9B95  I
=================================================================I
 		001
8 A 210 920 80 21
シート･クッション
レザー、右
AMG

ﾌｯﾄﾉｰﾄ解説
[950]
=================================================================I
コードおよび色番号:                                                     I
    581   I    582   I    ...   I    586   I    ...   I    588   I
 アンスラサイトI　　　  青色　　　  I    ...   I   緑色　　　  I    ...   I   灰色　　   I
[951]
 NO.9B87  I NO.5B88  I .......  I NO.9B86  I .......  I NO.7D61  I
[952]
 NO.7C45  I NO.7C45  I .......  I NO.7C45  I .......  I NO.7C45  I
[953]
 NO.9B51  I NO.9B51  I .......  I NO.9B51  I .......  I NO.9B51  I
[954]
 NO.9B95  I NO.9B95  I .......  I NO.9B95  I .......  I NO.9B95  I
[955]
 NO.9B95  I NO.9B95  I .......  I NO.9B95  I .......  I NO.9B95  I
=================================================================I
 		001
11 A 210 920 07 22
クッション・フレーム
左

ﾌｯﾄﾉｰﾄ解説
[900]
==========================================================================================================================I
コードおよび色番号:                                                     I
    141   I    142   I    144   I    145   I    ...   I    148   I        ...       I        ...       I        ...       I
    001   I    002   I    ...   I    005   I    ...   I    008   I        ...       I        ...       I        ...       I
    101   I    102   I    104   I    105   I    107   I    108   I        ...       I        ...       I        ...       I
    201   I    202   I    204   I    205   I    207   I    208   I        ...       I        ...       I        ...       I
    401   I    402   I    ...   I    405   I    407   I    408   I        ...       I        ...       I        ...       I
    ...   I    ...   I    ...   I    ...   I    ...   I    ...   I        726       I        727       I        728       I
[901]
 NO.9B51  I NO.5076  I NO.8F20  I NO.8F30  I .......  I NO.7101  I     NO.9B51      I     NO.9B51      I     NO.9B51      I
[902]
 NO.9B51  I NO.9B51  I NO.9B51  I NO.9B51  I NO9B51  I NO.9B51   I     NO.9B63      I     NO.9B64      I     NO.9B62      I
[903]
 NO.9B69  I NO.5B29  I NO.8G01  I NO.8G06  I .......  I NO.7D03  I     .......      I     .......      I     .......      I
[904]
 NO.9A86  I NO.5A97  I NO.8F21  I NO.8F29  I .......  I NO.7C15  I     NO.9A86      I     NO.9A86      I     NO.9A86      I
[905]
 NO.7C45  I NO.5076  I NO.8F20  I NO.8F30  I .......  I NO.7101  I     NO.7C45      I     NO.7C45      I     NO.7C45      I
[906]
 NO.9B52  I NO.5B34  I .......  I NO.8G09  I .......  I NO.7D01  I     NO.9B52      I     NO.9B52      I     NO.9B52      I
[907]
 NO.9B50  I NO.5A98  I NO.8F19  I NO.8F33  I .......  I NO.7C12  I     .......      I     .......      I     .......      I
[908]
 NO.9B57  I NO.5088  I NO.8F18  I NO.8F32  I .......  I NO.7144  I     NO.9B57      I     NO.9B57      I     NO.9B57      I
==========================================================================================================================I
 		001
14 A 210 920 08 22
シート･クッション･フレーム
右

ﾌｯﾄﾉｰﾄ解説
[900]
==========================================================================================================================I
コードおよび色番号:                                                     I
    141   I    142   I    144   I    145   I    ...   I    148   I        ...       I        ...       I        ...       I
    001   I    002   I    ...   I    005   I    ...   I    008   I        ...       I        ...       I        ...       I
    101   I    102   I    104   I    105   I    107   I    108   I        ...       I        ...       I        ...       I
    201   I    202   I    204   I    205   I    207   I    208   I        ...       I        ...       I        ...       I
    401   I    402   I    ...   I    405   I    407   I    408   I        ...       I        ...       I        ...       I
    ...   I    ...   I    ...   I    ...   I    ...   I    ...   I        726       I        727       I        728       I
[901]
 NO.9B51  I NO.5076  I NO.8F20  I NO.8F30  I .......  I NO.7101  I     NO.9B51      I     NO.9B51      I     NO.9B51      I
[902]
 NO.9B51  I NO.9B51  I NO.9B51  I NO.9B51  I NO9B51  I NO.9B51   I     NO.9B63      I     NO.9B64      I     NO.9B62      I
[903]
 NO.9B69  I NO.5B29  I NO.8G01  I NO.8G06  I .......  I NO.7D03  I     .......      I     .......      I     .......      I
[904]
 NO.9A86  I NO.5A97  I NO.8F21  I NO.8F29  I .......  I NO.7C15  I     NO.9A86      I     NO.9A86      I     NO.9A86      I
[905]
 NO.7C45  I NO.5076  I NO.8F20  I NO.8F30  I .......  I NO.7101  I     NO.7C45      I     NO.7C45      I     NO.7C45      I
[906]
 NO.9B52  I NO.5B34  I .......  I NO.8G09  I .......  I NO.7D01  I     NO.9B52      I     NO.9B52      I     NO.9B52      I
[907]
 NO.9B50  I NO.5A98  I NO.8F19  I NO.8F33  I .......  I NO.7C12  I     .......      I     .......      I     .......      I
[908]
 NO.9B57  I NO.5088  I NO.8F18  I NO.8F32  I .......  I NO.7144  I     NO.9B57      I     NO.9B57      I     NO.9B57      I
==========================================================================================================================I
 		001
17 A 210 922 00 36
スプリング
リヤ・シート・クッション・デテント / シート・クッション・フレーム 		002
20 A 210 920 31 50
サポート
AMG 		001
23 A 210 920 32 50
サポート
AMG 		001
32 A 210 920 21 61
カバー
レザー、左
AMG

ﾌｯﾄﾉｰﾄ解説
[950]
=================================================================I
コードおよび色番号:                                                     I
    581   I    582   I    ...   I    586   I    ...   I    588   I
 アンスラサイトI　　　  青色　　　  I    ...   I   緑色　　　  I    ...   I   灰色　　   I
[951]
 NO.9B87  I NO.5B88  I .......  I NO.9B86  I .......  I NO.7D61  I
[952]
 NO.7C45  I NO.7C45  I .......  I NO.7C45  I .......  I NO.7C45  I
[953]
 NO.9B51  I NO.9B51  I .......  I NO.9B51  I .......  I NO.9B51  I
[954]
 NO.9B95  I NO.9B95  I .......  I NO.9B95  I .......  I NO.9B95  I
[955]
 NO.9B95  I NO.9B95  I .......  I NO.9B95  I .......  I NO.9B95  I
=================================================================I
 		001
35 A 210 920 22 61
カバー
レザー、右
AMG

ﾌｯﾄﾉｰﾄ解説
[950]
=================================================================I
コードおよび色番号:                                                     I
    581   I    582   I    ...   I    586   I    ...   I    588   I
 アンスラサイトI　　　  青色　　　  I    ...   I   緑色　　　  I    ...   I   灰色　　   I
[951]
 NO.9B87  I NO.5B88  I .......  I NO.9B86  I .......  I NO.7D61  I
[952]
 NO.7C45  I NO.7C45  I .......  I NO.7C45  I .......  I NO.7C45  I
[953]
 NO.9B51  I NO.9B51  I .......  I NO.9B51  I .......  I NO.9B51  I
[954]
 NO.9B95  I NO.9B95  I .......  I NO.9B95  I .......  I NO.9B95  I
[955]
 NO.9B95  I NO.9B95  I .......  I NO.9B95  I .......  I NO.9B95  I
=================================================================I
 		001
53 A 210 929 01 43
カバー
左横 		001
53 A 210 929 02 43
カバー
右横 		001
56 A 210 924 07 29
ブラケット
カバー・タッキング 		NB
57 A 201 924 09 29
ブラケット
カバー・タッキング 		NB
59 A 202 988 23 78
クリップ
カバー・タッキング 		NB
60 A 202 988 22 78
クリップ
カバー・タッキング 		NB
62 A 201 924 31 29
ブラケット
カバー・タッキング 		NB
68 A 210 920 03 24
ベアリング 004
71 A 210 922 00 30
カバー

ﾌｯﾄﾉｰﾄ解説
[900]
==========================================================================================================================I
コードおよび色番号:                                                     I
    141   I    142   I    144   I    145   I    ...   I    148   I        ...       I        ...       I        ...       I
    001   I    002   I    ...   I    005   I    ...   I    008   I        ...       I        ...       I        ...       I
    101   I    102   I    104   I    105   I    107   I    108   I        ...       I        ...       I        ...       I
    201   I    202   I    204   I    205   I    207   I    208   I        ...       I        ...       I        ...       I
    401   I    402   I    ...   I    405   I    407   I    408   I        ...       I        ...       I        ...       I
    ...   I    ...   I    ...   I    ...   I    ...   I    ...   I        726       I        727       I        728       I
[901]
 NO.9B51  I NO.5076  I NO.8F20  I NO.8F30  I .......  I NO.7101  I     NO.9B51      I     NO.9B51      I     NO.9B51      I
[902]
 NO.9B51  I NO.9B51  I NO.9B51  I NO.9B51  I NO9B51  I NO.9B51   I     NO.9B63      I     NO.9B64      I     NO.9B62      I
[903]
 NO.9B69  I NO.5B29  I NO.8G01  I NO.8G06  I .......  I NO.7D03  I     .......      I     .......      I     .......      I
[904]
 NO.9A86  I NO.5A97  I NO.8F21  I NO.8F29  I .......  I NO.7C15  I     NO.9A86      I     NO.9A86      I     NO.9A86      I
[905]
 NO.7C45  I NO.5076  I NO.8F20  I NO.8F30  I .......  I NO.7101  I     NO.7C45      I     NO.7C45      I     NO.7C45      I
[906]
 NO.9B52  I NO.5B34  I .......  I NO.8G09  I .......  I NO.7D01  I     NO.9B52      I     NO.9B52      I     NO.9B52      I
[907]
 NO.9B50  I NO.5A98  I NO.8F19  I NO.8F33  I .......  I NO.7C12  I     .......      I     .......      I     .......      I
[908]
 NO.9B57  I NO.5088  I NO.8F18  I NO.8F32  I .......  I NO.7144  I     NO.9B57      I     NO.9B57      I     NO.9B57      I
==========================================================================================================================I
[950]
=================================================================I
コードおよび色番号:                                                     I
    581   I    582   I    ...   I    586   I    ...   I    588   I
 アンスラサイトI　　　  青色　　　  I    ...   I   緑色　　　  I    ...   I   灰色　　   I
[951]
 NO.9B87  I NO.5B88  I .......  I NO.9B86  I .......  I NO.7D61  I
[952]
 NO.7C45  I NO.7C45  I .......  I NO.7C45  I .......  I NO.7C45  I
[953]
 NO.9B51  I NO.9B51  I .......  I NO.9B51  I .......  I NO.9B51  I
[954]
 NO.9B95  I NO.9B95  I .......  I NO.9B95  I .......  I NO.9B95  I
[955]
 NO.9B95  I NO.9B95  I .......  I NO.9B95  I .......  I NO.9B95  I
=================================================================I
 		004
74 N 914126 006000
ボルト 008
77 A 210 975 00 14
ホルダー

ﾌｯﾄﾉｰﾄ解説
[900]
==========================================================================================================================I
コードおよび色番号:                                                     I
    141   I    142   I    144   I    145   I    ...   I    148   I        ...       I        ...       I        ...       I
    001   I    002   I    ...   I    005   I    ...   I    008   I        ...       I        ...       I        ...       I
    101   I    102   I    104   I    105   I    107   I    108   I        ...       I        ...       I        ...       I
    201   I    202   I    204   I    205   I    207   I    208   I        ...       I        ...       I        ...       I
    401   I    402   I    ...   I    405   I    407   I    408   I        ...       I        ...       I        ...       I
    ...   I    ...   I    ...   I    ...   I    ...   I    ...   I        726       I        727       I        728       I
[901]
 NO.9B51  I NO.5076  I NO.8F20  I NO.8F30  I .......  I NO.7101  I     NO.9B51      I     NO.9B51      I     NO.9B51      I
[902]
 NO.9B51  I NO.9B51  I NO.9B51  I NO.9B51  I NO9B51  I NO.9B51   I     NO.9B63      I     NO.9B64      I     NO.9B62      I
[903]
 NO.9B69  I NO.5B29  I NO.8G01  I NO.8G06  I .......  I NO.7D03  I     .......      I     .......      I     .......      I
[904]
 NO.9A86  I NO.5A97  I NO.8F21  I NO.8F29  I .......  I NO.7C15  I     NO.9A86      I     NO.9A86      I     NO.9A86      I
[905]
 NO.7C45  I NO.5076  I NO.8F20  I NO.8F30  I .......  I NO.7101  I     NO.7C45      I     NO.7C45      I     NO.7C45      I
[906]
 NO.9B52  I NO.5B34  I .......  I NO.8G09  I .......  I NO.7D01  I     NO.9B52      I     NO.9B52      I     NO.9B52      I
[907]
 NO.9B50  I NO.5A98  I NO.8F19  I NO.8F33  I .......  I NO.7C12  I     .......      I     .......      I     .......      I
[908]
 NO.9B57  I NO.5088  I NO.8F18  I NO.8F32  I .......  I NO.7144  I     NO.9B57      I     NO.9B57      I     NO.9B57      I
==========================================================================================================================I
[950]
=================================================================I
コードおよび色番号:                                                     I
    581   I    582   I    ...   I    586   I    ...   I    588   I
 アンスラサイトI　　　  青色　　　  I    ...   I   緑色　　　  I    ...   I   灰色　　   I
[951]
 NO.9B87  I NO.5B88  I .......  I NO.9B86  I .......  I NO.7D61  I
[952]
 NO.7C45  I NO.7C45  I .......  I NO.7C45  I .......  I NO.7C45  I
[953]
 NO.9B51  I NO.9B51  I .......  I NO.9B51  I .......  I NO.9B51  I
[954]
 NO.9B95  I NO.9B95  I .......  I NO.9B95  I .......  I NO.9B95  I
[955]
 NO.9B95  I NO.9B95  I .......  I NO.9B95  I .......  I NO.9B95  I
=================================================================I
 		001
80 N 007981 004360
鉄板ビス

これに変更 N 000000 000461 		-
80 N 000000 000461
鉄板ビス 002
83 A 210 922 01 52
ピン 002
92 A 210 920 67 30
バックレスト
レザー、左
AMG

ﾌｯﾄﾉｰﾄ解説
[950]
=================================================================I
コードおよび色番号:                                                     I
    581   I    582   I    ...   I    586   I    ...   I    588   I
 アンスラサイトI　　　  青色　　　  I    ...   I   緑色　　　  I    ...   I   灰色　　   I
[951]
 NO.9B87  I NO.5B88  I .......  I NO.9B86  I .......  I NO.7D61  I
[952]
 NO.7C45  I NO.7C45  I .......  I NO.7C45  I .......  I NO.7C45  I
[953]
 NO.9B51  I NO.9B51  I .......  I NO.9B51  I .......  I NO.9B51  I
[954]
 NO.9B95  I NO.9B95  I .......  I NO.9B95  I .......  I NO.9B95  I
[955]
 NO.9B95  I NO.9B95  I .......  I NO.9B95  I .......  I NO.9B95  I
=================================================================I
 		001
95 A 210 920 68 30
バックレスト
レザー、右
AMG

ﾌｯﾄﾉｰﾄ解説
[950]
=================================================================I
コードおよび色番号:                                                     I
    581   I    582   I    ...   I    586   I    ...   I    588   I
 アンスラサイトI　　　  青色　　　  I    ...   I   緑色　　　  I    ...   I   灰色　　   I
[951]
 NO.9B87  I NO.5B88  I .......  I NO.9B86  I .......  I NO.7D61  I
[952]
 NO.7C45  I NO.7C45  I .......  I NO.7C45  I .......  I NO.7C45  I
[953]
 NO.9B51  I NO.9B51  I .......  I NO.9B51  I .......  I NO.9B51  I
[954]
 NO.9B95  I NO.9B95  I .......  I NO.9B95  I .......  I NO.9B95  I
[955]
 NO.9B95  I NO.9B95  I .......  I NO.9B95  I .......  I NO.9B95  I
=================================================================I
 		001
98 A 210 920 07 32
バックレストフレーム
左

ﾌｯﾄﾉｰﾄ解説
[009]
ｼｬｼﾅﾝﾊﾞNo.以前: A 554981 , X 005475
 		001
98 A 210 920 11 32
バックレストフレーム
左

ﾌｯﾄﾉｰﾄ解説
[010]
ｼｬｼﾅﾝﾊﾞNo.以降: A 554982 , X 005476
 		001
101 A 210 920 08 32
バックレストフレーム
右 		001
104 A 210 920 01 24
ベアリング 001
107 A 000 984 58 29
ボルト 002
110 A 210 920 02 72
ロック
左 		001
110 A 210 920 01 72
ロック
右 		001
113 A 210 920 05 64
レバー
左 		001
113 A 210 920 00 64
レバー
右 		001
116 A 210 920 01 80
ケーブル
左 		001
116 A 210 920 02 80
ケーブル
右 		001
119 A 210 923 03 15
ピン
左 		001
119 A 210 923 04 15
ピン
右 		001
122 A 001 990 19 21
ボルト 002
125 N 914151 005000
ボルト 004
128 N 000912 008062
ボルト 004
131 N 304032 008009
ヘキサゴン・ナット 004
134 A 210 920 45 47
カバー
レザー、左
AMG

ﾌｯﾄﾉｰﾄ解説
[950]
=================================================================I
コードおよび色番号:                                                     I
    581   I    582   I    ...   I    586   I    ...   I    588   I
 アンスラサイトI　　　  青色　　　  I    ...   I   緑色　　　  I    ...   I   灰色　　   I
[951]
 NO.9B87  I NO.5B88  I .......  I NO.9B86  I .......  I NO.7D61  I
[952]
 NO.7C45  I NO.7C45  I .......  I NO.7C45  I .......  I NO.7C45  I
[953]
 NO.9B51  I NO.9B51  I .......  I NO.9B51  I .......  I NO.9B51  I
[954]
 NO.9B95  I NO.9B95  I .......  I NO.9B95  I .......  I NO.9B95  I
[955]
 NO.9B95  I NO.9B95  I .......  I NO.9B95  I .......  I NO.9B95  I
=================================================================I
 		001
137 A 210 920 46 47
カバー
レザー、右
AMG

ﾌｯﾄﾉｰﾄ解説
[950]
=================================================================I
コードおよび色番号:                                                     I
    581   I    582   I    ...   I    586   I    ...   I    588   I
 アンスラサイトI　　　  青色　　　  I    ...   I   緑色　　　  I    ...   I   灰色　　   I
[951]
 NO.9B87  I NO.5B88  I .......  I NO.9B86  I .......  I NO.7D61  I
[952]
 NO.7C45  I NO.7C45  I .......  I NO.7C45  I .......  I NO.7C45  I
[953]
 NO.9B51  I NO.9B51  I .......  I NO.9B51  I .......  I NO.9B51  I
[954]
 NO.9B95  I NO.9B95  I .......  I NO.9B95  I .......  I NO.9B95  I
[955]
 NO.9B95  I NO.9B95  I .......  I NO.9B95  I .......  I NO.9B95  I
=================================================================I
 		001
140 A 126 988 00 82
アイ
上部、運転席バックレストのヘッドレスト 		006
143 A 005 990 09 40
ウインドウ
下部、運転席バックレストのヘッドレスト 		006
146 A 210 920 13 16
サポート
レザー、左
AMG 		001
149 A 210 920 14 16
サポート
レザー、右
AMG 		001
152 A 202 988 22 78
クリップ
カバー・タッキング 		NB
155 A 463 924 21 29
ブラケット
カバー・タッキング 		NB
158 A 210 924 01 62
ライニング
左 		001
161 A 210 924 02 62
ライニング
右 		001
167 A 202 924 05 29
ブラケット
カバー・マウント、縦

ﾌｯﾄﾉｰﾄ解説
[004]
ｼｬｼﾅﾝﾊﾞNo.以降: A 132402
 		002
173 A 210 920 00 88
ハウジング 004
176 A 210 924 05 37
カバー
左

ﾌｯﾄﾉｰﾄ解説
[900]
==========================================================================================================================I
コードおよび色番号:                                                     I
    141   I    142   I    144   I    145   I    ...   I    148   I        ...       I        ...       I        ...       I
    001   I    002   I    ...   I    005   I    ...   I    008   I        ...       I        ...       I        ...       I
    101   I    102   I    104   I    105   I    107   I    108   I        ...       I        ...       I        ...       I
    201   I    202   I    204   I    205   I    207   I    208   I        ...       I        ...       I        ...       I
    401   I    402   I    ...   I    405   I    407   I    408   I        ...       I        ...       I        ...       I
    ...   I    ...   I    ...   I    ...   I    ...   I    ...   I        726       I        727       I        728       I
[901]
 NO.9B51  I NO.5076  I NO.8F20  I NO.8F30  I .......  I NO.7101  I     NO.9B51      I     NO.9B51      I     NO.9B51      I
[902]
 NO.9B51  I NO.9B51  I NO.9B51  I NO.9B51  I NO9B51  I NO.9B51   I     NO.9B63      I     NO.9B64      I     NO.9B62      I
[903]
 NO.9B69  I NO.5B29  I NO.8G01  I NO.8G06  I .......  I NO.7D03  I     .......      I     .......      I     .......      I
[904]
 NO.9A86  I NO.5A97  I NO.8F21  I NO.8F29  I .......  I NO.7C15  I     NO.9A86      I     NO.9A86      I     NO.9A86      I
[905]
 NO.7C45  I NO.5076  I NO.8F20  I NO.8F30  I .......  I NO.7101  I     NO.7C45      I     NO.7C45      I     NO.7C45      I
[906]
 NO.9B52  I NO.5B34  I .......  I NO.8G09  I .......  I NO.7D01  I     NO.9B52      I     NO.9B52      I     NO.9B52      I
[907]
 NO.9B50  I NO.5A98  I NO.8F19  I NO.8F33  I .......  I NO.7C12  I     .......      I     .......      I     .......      I
[908]
 NO.9B57  I NO.5088  I NO.8F18  I NO.8F32  I .......  I NO.7144  I     NO.9B57      I     NO.9B57      I     NO.9B57      I
==========================================================================================================================I
[950]
=================================================================I
コードおよび色番号:                                                     I
    581   I    582   I    ...   I    586   I    ...   I    588   I
 アンスラサイトI　　　  青色　　　  I    ...   I   緑色　　　  I    ...   I   灰色　　   I
[951]
 NO.9B87  I NO.5B88  I .......  I NO.9B86  I .......  I NO.7D61  I
[952]
 NO.7C45  I NO.7C45  I .......  I NO.7C45  I .......  I NO.7C45  I
[953]
 NO.9B51  I NO.9B51  I .......  I NO.9B51  I .......  I NO.9B51  I
[954]
 NO.9B95  I NO.9B95  I .......  I NO.9B95  I .......  I NO.9B95  I
[955]
 NO.9B95  I NO.9B95  I .......  I NO.9B95  I .......  I NO.9B95  I
=================================================================I
 		001
179 A 210 924 00 37
インパネカバー
右

ﾌｯﾄﾉｰﾄ解説
[900]
==========================================================================================================================I
コードおよび色番号:                                                     I
    141   I    142   I    144   I    145   I    ...   I    148   I        ...       I        ...       I        ...       I
    001   I    002   I    ...   I    005   I    ...   I    008   I        ...       I        ...       I        ...       I
    101   I    102   I    104   I    105   I    107   I    108   I        ...       I        ...       I        ...       I
    201   I    202   I    204   I    205   I    207   I    208   I        ...       I        ...       I        ...       I
    401   I    402   I    ...   I    405   I    407   I    408   I        ...       I        ...       I        ...       I
    ...   I    ...   I    ...   I    ...   I    ...   I    ...   I        726       I        727       I        728       I
[901]
 NO.9B51  I NO.5076  I NO.8F20  I NO.8F30  I .......  I NO.7101  I     NO.9B51      I     NO.9B51      I     NO.9B51      I
[902]
 NO.9B51  I NO.9B51  I NO.9B51  I NO.9B51  I NO9B51  I NO.9B51   I     NO.9B63      I     NO.9B64      I     NO.9B62      I
[903]
 NO.9B69  I NO.5B29  I NO.8G01  I NO.8G06  I .......  I NO.7D03  I     .......      I     .......      I     .......      I
[904]
 NO.9A86  I NO.5A97  I NO.8F21  I NO.8F29  I .......  I NO.7C15  I     NO.9A86      I     NO.9A86      I     NO.9A86      I
[905]
 NO.7C45  I NO.5076  I NO.8F20  I NO.8F30  I .......  I NO.7101  I     NO.7C45      I     NO.7C45      I     NO.7C45      I
[906]
 NO.9B52  I NO.5B34  I .......  I NO.8G09  I .......  I NO.7D01  I     NO.9B52      I     NO.9B52      I     NO.9B52      I
[907]
 NO.9B50  I NO.5A98  I NO.8F19  I NO.8F33  I .......  I NO.7C12  I     .......      I     .......      I     .......      I
[908]
 NO.9B57  I NO.5088  I NO.8F18  I NO.8F32  I .......  I NO.7144  I     NO.9B57      I     NO.9B57      I     NO.9B57      I
==========================================================================================================================I
[950]
=================================================================I
コードおよび色番号:                                                     I
    581   I    582   I    ...   I    586   I    ...   I    588   I
 アンスラサイトI　　　  青色　　　  I    ...   I   緑色　　　  I    ...   I   灰色　　   I
[951]
 NO.9B87  I NO.5B88  I .......  I NO.9B86  I .......  I NO.7D61  I
[952]
 NO.7C45  I NO.7C45  I .......  I NO.7C45  I .......  I NO.7C45  I
[953]
 NO.9B51  I NO.9B51  I .......  I NO.9B51  I .......  I NO.9B51  I
[954]
 NO.9B95  I NO.9B95  I .......  I NO.9B95  I .......  I NO.9B95  I
[955]
 NO.9B95  I NO.9B95  I .......  I NO.9B95  I .......  I NO.9B95  I
=================================================================I
 		001
182 N 914151 006001
ボルト 008
185 A 210 923 01 47
リテーナ
シートベルト・バックル・ホルダ、左

ﾌｯﾄﾉｰﾄ解説
[900]
==========================================================================================================================I
コードおよび色番号:                                                     I
    141   I    142   I    144   I    145   I    ...   I    148   I        ...       I        ...       I        ...       I
    001   I    002   I    ...   I    005   I    ...   I    008   I        ...       I        ...       I        ...       I
    101   I    102   I    104   I    105   I    107   I    108   I        ...       I        ...       I        ...       I
    201   I    202   I    204   I    205   I    207   I    208   I        ...       I        ...       I        ...       I
    401   I    402   I    ...   I    405   I    407   I    408   I        ...       I        ...       I        ...       I
    ...   I    ...   I    ...   I    ...   I    ...   I    ...   I        726       I        727       I        728       I
[901]
 NO.9B51  I NO.5076  I NO.8F20  I NO.8F30  I .......  I NO.7101  I     NO.9B51      I     NO.9B51      I     NO.9B51      I
[902]
 NO.9B51  I NO.9B51  I NO.9B51  I NO.9B51  I NO9B51  I NO.9B51   I     NO.9B63      I     NO.9B64      I     NO.9B62      I
[903]
 NO.9B69  I NO.5B29  I NO.8G01  I NO.8G06  I .......  I NO.7D03  I     .......      I     .......      I     .......      I
[904]
 NO.9A86  I NO.5A97  I NO.8F21  I NO.8F29  I .......  I NO.7C15  I     NO.9A86      I     NO.9A86      I     NO.9A86      I
[905]
 NO.7C45  I NO.5076  I NO.8F20  I NO.8F30  I .......  I NO.7101  I     NO.7C45      I     NO.7C45      I     NO.7C45      I
[906]
 NO.9B52  I NO.5B34  I .......  I NO.8G09  I .......  I NO.7D01  I     NO.9B52      I     NO.9B52      I     NO.9B52      I
[907]
 NO.9B50  I NO.5A98  I NO.8F19  I NO.8F33  I .......  I NO.7C12  I     .......      I     .......      I     .......      I
[908]
 NO.9B57  I NO.5088  I NO.8F18  I NO.8F32  I .......  I NO.7144  I     NO.9B57      I     NO.9B57      I     NO.9B57      I
==========================================================================================================================I
[950]
=================================================================I
コードおよび色番号:                                                     I
    581   I    582   I    ...   I    586   I    ...   I    588   I
 アンスラサイトI　　　  青色　　　  I    ...   I   緑色　　　  I    ...   I   灰色　　   I
[951]
 NO.9B87  I NO.5B88  I .......  I NO.9B86  I .......  I NO.7D61  I
[952]
 NO.7C45  I NO.7C45  I .......  I NO.7C45  I .......  I NO.7C45  I
[953]
 NO.9B51  I NO.9B51  I .......  I NO.9B51  I .......  I NO.9B51  I
[954]
 NO.9B95  I NO.9B95  I .......  I NO.9B95  I .......  I NO.9B95  I
[955]
 NO.9B95  I NO.9B95  I .......  I NO.9B95  I .......  I NO.9B95  I
=================================================================I
 		001
185 A 210 923 02 47
リテーナ
シートベルト・バックル・ホルダ、右

ﾌｯﾄﾉｰﾄ解説
[900]
==========================================================================================================================I
コードおよび色番号:                                                     I
    141   I    142   I    144   I    145   I    ...   I    148   I        ...       I        ...       I        ...       I
    001   I    002   I    ...   I    005   I    ...   I    008   I        ...       I        ...       I        ...       I
    101   I    102   I    104   I    105   I    107   I    108   I        ...       I        ...       I        ...       I
    201   I    202   I    204   I    205   I    207   I    208   I        ...       I        ...       I        ...       I
    401   I    402   I    ...   I    405   I    407   I    408   I        ...       I        ...       I        ...       I
    ...   I    ...   I    ...   I    ...   I    ...   I    ...   I        726       I        727       I        728       I
[901]
 NO.9B51  I NO.5076  I NO.8F20  I NO.8F30  I .......  I NO.7101  I     NO.9B51      I     NO.9B51      I     NO.9B51      I
[902]
 NO.9B51  I NO.9B51  I NO.9B51  I NO.9B51  I NO9B51  I NO.9B51   I     NO.9B63      I     NO.9B64      I     NO.9B62      I
[903]
 NO.9B69  I NO.5B29  I NO.8G01  I NO.8G06  I .......  I NO.7D03  I     .......      I     .......      I     .......      I
[904]
 NO.9A86  I NO.5A97  I NO.8F21  I NO.8F29  I .......  I NO.7C15  I     NO.9A86      I     NO.9A86      I     NO.9A86      I
[905]
 NO.7C45  I NO.5076  I NO.8F20  I NO.8F30  I .......  I NO.7101  I     NO.7C45      I     NO.7C45      I     NO.7C45      I
[906]
 NO.9B52  I NO.5B34  I .......  I NO.8G09  I .......  I NO.7D01  I     NO.9B52      I     NO.9B52      I     NO.9B52      I
[907]
 NO.9B50  I NO.5A98  I NO.8F19  I NO.8F33  I .......  I NO.7C12  I     .......      I     .......      I     .......      I
[908]
 NO.9B57  I NO.5088  I NO.8F18  I NO.8F32  I .......  I NO.7144  I     NO.9B57      I     NO.9B57      I     NO.9B57      I
==========================================================================================================================I
[950]
=================================================================I
コードおよび色番号:                                                     I
    581   I    582   I    ...   I    586   I    ...   I    588   I
 アンスラサイトI　　　  青色　　　  I    ...   I   緑色　　　  I    ...   I   灰色　　   I
[951]
 NO.9B87  I NO.5B88  I .......  I NO.9B86  I .......  I NO.7D61  I
[952]
 NO.7C45  I NO.7C45  I .......  I NO.7C45  I .......  I NO.7C45  I
[953]
 NO.9B51  I NO.9B51  I .......  I NO.9B51  I .......  I NO.9B51  I
[954]
 NO.9B95  I NO.9B95  I .......  I NO.9B95  I .......  I NO.9B95  I
[955]
 NO.9B95  I NO.9B95  I .......  I NO.9B95  I .......  I NO.9B95  I
=================================================================I
 		001
188 N 914136 003004
ボルト 002
191 A 210 920 01 87
バックレスト調整
左

ﾌｯﾄﾉｰﾄ解説
[007]
ｼｬｼﾅﾝﾊﾞNo.以前: A 659700 , X 010311
 		001
191 A 210 920 09 87
バックレスト調整
左

ﾌｯﾄﾉｰﾄ解説
[008]
ｼｬｼﾅﾝﾊﾞNo.以降: A 659701 , X 010312
 		001
191 A 210 920 02 87
バックレスト調整
右 		001
194 A 000 984 56 29
ボルト
リヤ・バックレスト / バックレスト調整 		003
197 A 000 984 58 29
ボルト
リヤ・バックレスト / バックレスト調整 		003
200 A 210 924 03 37
カバー

ﾌｯﾄﾉｰﾄ解説
[900]
==========================================================================================================================I
コードおよび色番号:                                                     I
    141   I    142   I    144   I    145   I    ...   I    148   I        ...       I        ...       I        ...       I
    001   I    002   I    ...   I    005   I    ...   I    008   I        ...       I        ...       I        ...       I
    101   I    102   I    104   I    105   I    107   I    108   I        ...       I        ...       I        ...       I
    201   I    202   I    204   I    205   I    207   I    208   I        ...       I        ...       I        ...       I
    401   I    402   I    ...   I    405   I    407   I    408   I        ...       I        ...       I        ...       I
    ...   I    ...   I    ...   I    ...   I    ...   I    ...   I        726       I        727       I        728       I
[901]
 NO.9B51  I NO.5076  I NO.8F20  I NO.8F30  I .......  I NO.7101  I     NO.9B51      I     NO.9B51      I     NO.9B51      I
[902]
 NO.9B51  I NO.9B51  I NO.9B51  I NO.9B51  I NO9B51  I NO.9B51   I     NO.9B63      I     NO.9B64      I     NO.9B62      I
[903]
 NO.9B69  I NO.5B29  I NO.8G01  I NO.8G06  I .......  I NO.7D03  I     .......      I     .......      I     .......      I
[904]
 NO.9A86  I NO.5A97  I NO.8F21  I NO.8F29  I .......  I NO.7C15  I     NO.9A86      I     NO.9A86      I     NO.9A86      I
[905]
 NO.7C45  I NO.5076  I NO.8F20  I NO.8F30  I .......  I NO.7101  I     NO.7C45      I     NO.7C45      I     NO.7C45      I
[906]
 NO.9B52  I NO.5B34  I .......  I NO.8G09  I .......  I NO.7D01  I     NO.9B52      I     NO.9B52      I     NO.9B52      I
[907]
 NO.9B50  I NO.5A98  I NO.8F19  I NO.8F33  I .......  I NO.7C12  I     .......      I     .......      I     .......      I
[908]
 NO.9B57  I NO.5088  I NO.8F18  I NO.8F32  I .......  I NO.7144  I     NO.9B57      I     NO.9B57      I     NO.9B57      I
==========================================================================================================================I
[950]
=================================================================I
コードおよび色番号:                                                     I
    581   I    582   I    ...   I    586   I    ...   I    588   I
 アンスラサイトI　　　  青色　　　  I    ...   I   緑色　　　  I    ...   I   灰色　　   I
[951]
 NO.9B87  I NO.5B88  I .......  I NO.9B86  I .......  I NO.7D61  I
[952]
 NO.7C45  I NO.7C45  I .......  I NO.7C45  I .......  I NO.7C45  I
[953]
 NO.9B51  I NO.9B51  I .......  I NO.9B51  I .......  I NO.9B51  I
[954]
 NO.9B95  I NO.9B95  I .......  I NO.9B95  I .......  I NO.9B95  I
[955]
 NO.9B95  I NO.9B95  I .......  I NO.9B95  I .......  I NO.9B95  I
=================================================================I
 		001
200 A 210 924 04 37
カバー

ﾌｯﾄﾉｰﾄ解説
[900]
==========================================================================================================================I
コードおよび色番号:                                                     I
    141   I    142   I    144   I    145   I    ...   I    148   I        ...       I        ...       I        ...       I
    001   I    002   I    ...   I    005   I    ...   I    008   I        ...       I        ...       I        ...       I
    101   I    102   I    104   I    105   I    107   I    108   I        ...       I        ...       I        ...       I
    201   I    202   I    204   I    205   I    207   I    208   I        ...       I        ...       I        ...       I
    401   I    402   I    ...   I    405   I    407   I    408   I        ...       I        ...       I        ...       I
    ...   I    ...   I    ...   I    ...   I    ...   I    ...   I        726       I        727       I        728       I
[901]
 NO.9B51  I NO.5076  I NO.8F20  I NO.8F30  I .......  I NO.7101  I     NO.9B51      I     NO.9B51      I     NO.9B51      I
[902]
 NO.9B51  I NO.9B51  I NO.9B51  I NO.9B51  I NO9B51  I NO.9B51   I     NO.9B63      I     NO.9B64      I     NO.9B62      I
[903]
 NO.9B69  I NO.5B29  I NO.8G01  I NO.8G06  I .......  I NO.7D03  I     .......      I     .......      I     .......      I
[904]
 NO.9A86  I NO.5A97  I NO.8F21  I NO.8F29  I .......  I NO.7C15  I     NO.9A86      I     NO.9A86      I     NO.9A86      I
[905]
 NO.7C45  I NO.5076  I NO.8F20  I NO.8F30  I .......  I NO.7101  I     NO.7C45      I     NO.7C45      I     NO.7C45      I
[906]
 NO.9B52  I NO.5B34  I .......  I NO.8G09  I .......  I NO.7D01  I     NO.9B52      I     NO.9B52      I     NO.9B52      I
[907]
 NO.9B50  I NO.5A98  I NO.8F19  I NO.8F33  I .......  I NO.7C12  I     .......      I     .......      I     .......      I
[908]
 NO.9B57  I NO.5088  I NO.8F18  I NO.8F32  I .......  I NO.7144  I     NO.9B57      I     NO.9B57      I     NO.9B57      I
==========================================================================================================================I
[950]
=================================================================I
コードおよび色番号:                                                     I
    581   I    582   I    ...   I    586   I    ...   I    588   I
 アンスラサイトI　　　  青色　　　  I    ...   I   緑色　　　  I    ...   I   灰色　　   I
[951]
 NO.9B87  I NO.5B88  I .......  I NO.9B86  I .......  I NO.7D61  I
[952]
 NO.7C45  I NO.7C45  I .......  I NO.7C45  I .......  I NO.7C45  I
[953]
 NO.9B51  I NO.9B51  I .......  I NO.9B51  I .......  I NO.9B51  I
[954]
 NO.9B95  I NO.9B95  I .......  I NO.9B95  I .......  I NO.9B95  I
[955]
 NO.9B95  I NO.9B95  I .......  I NO.9B95  I .......  I NO.9B95  I
=================================================================I
 		001
212 A 210 920 00 67
ガイド
右、ヘッドレスト用

ﾌｯﾄﾉｰﾄ解説
[900]
==========================================================================================================================I
コードおよび色番号:                                                     I
    141   I    142   I    144   I    145   I    ...   I    148   I        ...       I        ...       I        ...       I
    001   I    002   I    ...   I    005   I    ...   I    008   I        ...       I        ...       I        ...       I
    101   I    102   I    104   I    105   I    107   I    108   I        ...       I        ...       I        ...       I
    201   I    202   I    204   I    205   I    207   I    208   I        ...       I        ...       I        ...       I
    401   I    402   I    ...   I    405   I    407   I    408   I        ...       I        ...       I        ...       I
    ...   I    ...   I    ...   I    ...   I    ...   I    ...   I        726       I        727       I        728       I
[901]
 NO.9B51  I NO.5076  I NO.8F20  I NO.8F30  I .......  I NO.7101  I     NO.9B51      I     NO.9B51      I     NO.9B51      I
[902]
 NO.9B51  I NO.9B51  I NO.9B51  I NO.9B51  I NO9B51  I NO.9B51   I     NO.9B63      I     NO.9B64      I     NO.9B62      I
[903]
 NO.9B69  I NO.5B29  I NO.8G01  I NO.8G06  I .......  I NO.7D03  I     .......      I     .......      I     .......      I
[904]
 NO.9A86  I NO.5A97  I NO.8F21  I NO.8F29  I .......  I NO.7C15  I     NO.9A86      I     NO.9A86      I     NO.9A86      I
[905]
 NO.7C45  I NO.5076  I NO.8F20  I NO.8F30  I .......  I NO.7101  I     NO.7C45      I     NO.7C45      I     NO.7C45      I
[906]
 NO.9B52  I NO.5B34  I .......  I NO.8G09  I .......  I NO.7D01  I     NO.9B52      I     NO.9B52      I     NO.9B52      I
[907]
 NO.9B50  I NO.5A98  I NO.8F19  I NO.8F33  I .......  I NO.7C12  I     .......      I     .......      I     .......      I
[908]
 NO.9B57  I NO.5088  I NO.8F18  I NO.8F32  I .......  I NO.7144  I     NO.9B57      I     NO.9B57      I     NO.9B57      I
==========================================================================================================================I
[932]
 NO.7C 45  I NO.5B 68  I NO.1A 26   I NO.8G 69  I NO.7D 66  I
============================================================I
[937]
 NO.7C 45  I NO.5B 68  I NO.1A 26   I NO.8G 69  I NO.7D 66  I
============================================================I
[950]
=================================================================I
コードおよび色番号:                                                     I
    581   I    582   I    ...   I    586   I    ...   I    588   I
 アンスラサイトI　　　  青色　　　  I    ...   I   緑色　　　  I    ...   I   灰色　　   I
[951]
 NO.9B87  I NO.5B88  I .......  I NO.9B86  I .......  I NO.7D61  I
[952]
 NO.7C45  I NO.7C45  I .......  I NO.7C45  I .......  I NO.7C45  I
[953]
 NO.9B51  I NO.9B51  I .......  I NO.9B51  I .......  I NO.9B51  I
[954]
 NO.9B95  I NO.9B95  I .......  I NO.9B95  I .......  I NO.9B95  I
[955]
 NO.9B95  I NO.9B95  I .......  I NO.9B95  I .......  I NO.9B95  I
=================================================================I
 		003
215 A 210 920 01 67
ヘッドレストガイド
左、ヘッドレスト用

ﾌｯﾄﾉｰﾄ解説
[900]
==========================================================================================================================I
コードおよび色番号:                                                     I
    141   I    142   I    144   I    145   I    ...   I    148   I        ...       I        ...       I        ...       I
    001   I    002   I    ...   I    005   I    ...   I    008   I        ...       I        ...       I        ...       I
    101   I    102   I    104   I    105   I    107   I    108   I        ...       I        ...       I        ...       I
    201   I    202   I    204   I    205   I    207   I    208   I        ...       I        ...       I        ...       I
    401   I    402   I    ...   I    405   I    407   I    408   I        ...       I        ...       I        ...       I
    ...   I    ...   I    ...   I    ...   I    ...   I    ...   I        726       I        727       I        728       I
[901]
 NO.9B51  I NO.5076  I NO.8F20  I NO.8F30  I .......  I NO.7101  I     NO.9B51      I     NO.9B51      I     NO.9B51      I
[902]
 NO.9B51  I NO.9B51  I NO.9B51  I NO.9B51  I NO9B51  I NO.9B51   I     NO.9B63      I     NO.9B64      I     NO.9B62      I
[903]
 NO.9B69  I NO.5B29  I NO.8G01  I NO.8G06  I .......  I NO.7D03  I     .......      I     .......      I     .......      I
[904]
 NO.9A86  I NO.5A97  I NO.8F21  I NO.8F29  I .......  I NO.7C15  I     NO.9A86      I     NO.9A86      I     NO.9A86      I
[905]
 NO.7C45  I NO.5076  I NO.8F20  I NO.8F30  I .......  I NO.7101  I     NO.7C45      I     NO.7C45      I     NO.7C45      I
[906]
 NO.9B52  I NO.5B34  I .......  I NO.8G09  I .......  I NO.7D01  I     NO.9B52      I     NO.9B52      I     NO.9B52      I
[907]
 NO.9B50  I NO.5A98  I NO.8F19  I NO.8F33  I .......  I NO.7C12  I     .......      I     .......      I     .......      I
[908]
 NO.9B57  I NO.5088  I NO.8F18  I NO.8F32  I .......  I NO.7144  I     NO.9B57      I     NO.9B57      I     NO.9B57      I
==========================================================================================================================I
[932]
 NO.7C 45  I NO.5B 68  I NO.1A 26   I NO.8G 69  I NO.7D 66  I
============================================================I
[937]
 NO.7C 45  I NO.5B 68  I NO.1A 26   I NO.8G 69  I NO.7D 66  I
============================================================I
[950]
=================================================================I
コードおよび色番号:                                                     I
    581   I    582   I    ...   I    586   I    ...   I    588   I
 アンスラサイトI　　　  青色　　　  I    ...   I   緑色　　　  I    ...   I   灰色　　   I
[951]
 NO.9B87  I NO.5B88  I .......  I NO.9B86  I .......  I NO.7D61  I
[952]
 NO.7C45  I NO.7C45  I .......  I NO.7C45  I .......  I NO.7C45  I
[953]
 NO.9B51  I NO.9B51  I .......  I NO.9B51  I .......  I NO.9B51  I
[954]
 NO.9B95  I NO.9B95  I .......  I NO.9B95  I .......  I NO.9B95  I
[955]
 NO.9B95  I NO.9B95  I .......  I NO.9B95  I .......  I NO.9B95  I
=================================================================I
 		003
218 A 210 970 03 20
ベアリング 001
221 A 210 923 00 34
スプリング 001
224 A 210 923 05 15
ピン 001
227 A 210 923 00 17
スリーブ 001
230 A 210 923 00 11
プレート 001
233 N 914151 006001
ボルト 004
236 A 210 924 07 37
カバー 001
239 A 008 988 65 78
クリップ 006
242 A 210 970 12 30
格納式アームレスト
レザー

ﾌｯﾄﾉｰﾄ解説
[900]
==========================================================================================================================I
コードおよび色番号:                                                     I
    141   I    142   I    144   I    145   I    ...   I    148   I        ...       I        ...       I        ...       I
    001   I    002   I    ...   I    005   I    ...   I    008   I        ...       I        ...       I        ...       I
    101   I    102   I    104   I    105   I    107   I    108   I        ...       I        ...       I        ...       I
    201   I    202   I    204   I    205   I    207   I    208   I        ...       I        ...       I        ...       I
    401   I    402   I    ...   I    405   I    407   I    408   I        ...       I        ...       I        ...       I
    ...   I    ...   I    ...   I    ...   I    ...   I    ...   I        726       I        727       I        728       I
[901]
 NO.9B51  I NO.5076  I NO.8F20  I NO.8F30  I .......  I NO.7101  I     NO.9B51      I     NO.9B51      I     NO.9B51      I
[902]
 NO.9B51  I NO.9B51  I NO.9B51  I NO.9B51  I NO9B51  I NO.9B51   I     NO.9B63      I     NO.9B64      I     NO.9B62      I
[903]
 NO.9B69  I NO.5B29  I NO.8G01  I NO.8G06  I .......  I NO.7D03  I     .......      I     .......      I     .......      I
[904]
 NO.9A86  I NO.5A97  I NO.8F21  I NO.8F29  I .......  I NO.7C15  I     NO.9A86      I     NO.9A86      I     NO.9A86      I
[905]
 NO.7C45  I NO.5076  I NO.8F20  I NO.8F30  I .......  I NO.7101  I     NO.7C45      I     NO.7C45      I     NO.7C45      I
[906]
 NO.9B52  I NO.5B34  I .......  I NO.8G09  I .......  I NO.7D01  I     NO.9B52      I     NO.9B52      I     NO.9B52      I
[907]
 NO.9B50  I NO.5A98  I NO.8F19  I NO.8F33  I .......  I NO.7C12  I     .......      I     .......      I     .......      I
[908]
 NO.9B57  I NO.5088  I NO.8F18  I NO.8F32  I .......  I NO.7144  I     NO.9B57      I     NO.9B57      I     NO.9B57      I
==========================================================================================================================I
[950]
=================================================================I
コードおよび色番号:                                                     I
    581   I    582   I    ...   I    586   I    ...   I    588   I
 アンスラサイトI　　　  青色　　　  I    ...   I   緑色　　　  I    ...   I   灰色　　   I
[951]
 NO.9B87  I NO.5B88  I .......  I NO.9B86  I .......  I NO.7D61  I
[952]
 NO.7C45  I NO.7C45  I .......  I NO.7C45  I .......  I NO.7C45  I
[953]
 NO.9B51  I NO.9B51  I .......  I NO.9B51  I .......  I NO.9B51  I
[954]
 NO.9B95  I NO.9B95  I .......  I NO.9B95  I .......  I NO.9B95  I
[955]
 NO.9B95  I NO.9B95  I .......  I NO.9B95  I .......  I NO.9B95  I
=================================================================I
 		001
245 A 210 973 02 44
ハウジング

ﾌｯﾄﾉｰﾄ解説
[900]
==========================================================================================================================I
コードおよび色番号:                                                     I
    141   I    142   I    144   I    145   I    ...   I    148   I        ...       I        ...       I        ...       I
    001   I    002   I    ...   I    005   I    ...   I    008   I        ...       I        ...       I        ...       I
    101   I    102   I    104   I    105   I    107   I    108   I        ...       I        ...       I        ...       I
    201   I    202   I    204   I    205   I    207   I    208   I        ...       I        ...       I        ...       I
    401   I    402   I    ...   I    405   I    407   I    408   I        ...       I        ...       I        ...       I
    ...   I    ...   I    ...   I    ...   I    ...   I    ...   I        726       I        727       I        728       I
[901]
 NO.9B51  I NO.5076  I NO.8F20  I NO.8F30  I .......  I NO.7101  I     NO.9B51      I     NO.9B51      I     NO.9B51      I
[902]
 NO.9B51  I NO.9B51  I NO.9B51  I NO.9B51  I NO9B51  I NO.9B51   I     NO.9B63      I     NO.9B64      I     NO.9B62      I
[903]
 NO.9B69  I NO.5B29  I NO.8G01  I NO.8G06  I .......  I NO.7D03  I     .......      I     .......      I     .......      I
[904]
 NO.9A86  I NO.5A97  I NO.8F21  I NO.8F29  I .......  I NO.7C15  I     NO.9A86      I     NO.9A86      I     NO.9A86      I
[905]
 NO.7C45  I NO.5076  I NO.8F20  I NO.8F30  I .......  I NO.7101  I     NO.7C45      I     NO.7C45      I     NO.7C45      I
[906]
 NO.9B52  I NO.5B34  I .......  I NO.8G09  I .......  I NO.7D01  I     NO.9B52      I     NO.9B52      I     NO.9B52      I
[907]
 NO.9B50  I NO.5A98  I NO.8F19  I NO.8F33  I .......  I NO.7C12  I     .......      I     .......      I     .......      I
[908]
 NO.9B57  I NO.5088  I NO.8F18  I NO.8F32  I .......  I NO.7144  I     NO.9B57      I     NO.9B57      I     NO.9B57      I
==========================================================================================================================I
 		001
248 A 210 920 01 14
ホルダー
リヤ・バックレスト・ストッパ 		002
250 A 210 920 00 11
プレート
リヤ・バックレスト・ストッパ 		001
251 N 304017 008016
6角ボルト 008
254 A 210 990 06 01
ボルト 002
257 N 304032 010003
ヘキサゴン・ナット 002
