スポーツ・カー、ロードスター、モデル・イヤー 1999年
129.068 => SL 500 JAPAN
M: 113961
GA: 722624

Schema

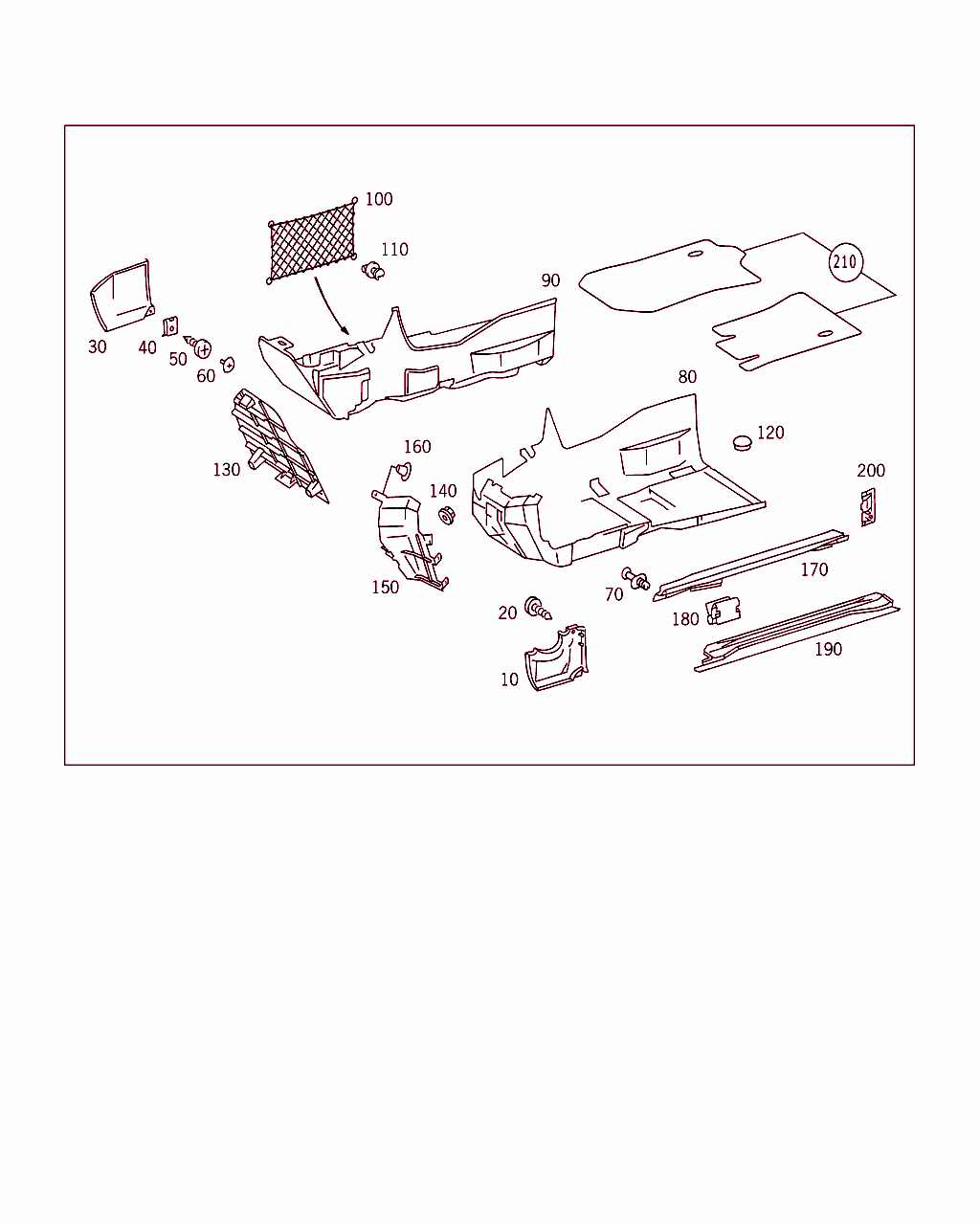

B68435000013.120321

[image]

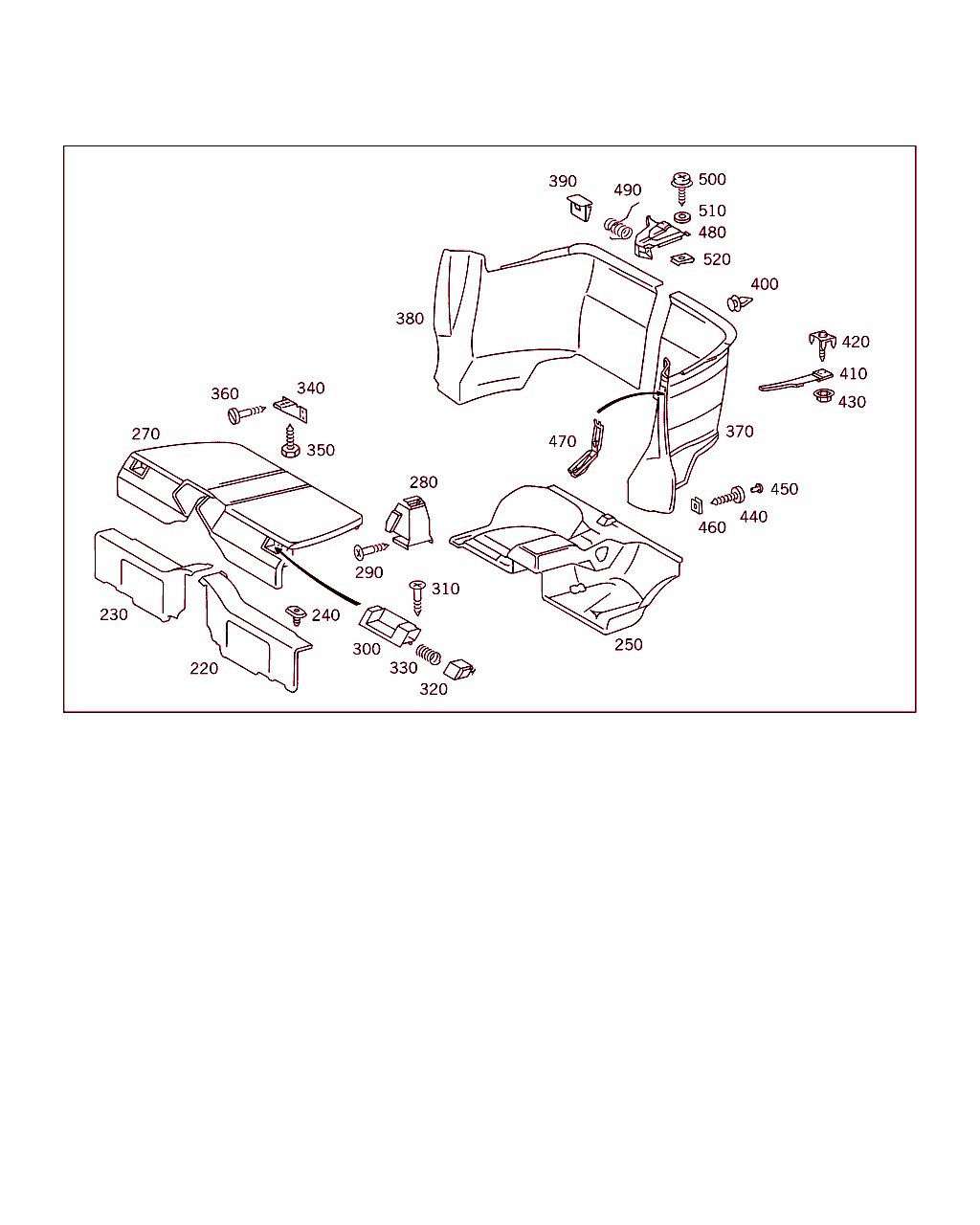

B68435000009.980930

[image]
x 番号 部品番号 名称/補足ｲﾝﾌｫﾒｰｼｮﾝ 数 ﾊﾞｰｼﾞｮﾝ
10 A 129 680 01 80
カバー
フロント・ウォール左横

ﾌｯﾄﾉｰﾄ解説
[940]
=============================================================================================================I
コードおよび色番号:                                                                                                   I
    061   I    231   I    232   I    234   I    238   I    239   I    511   I    514   I    518   I    519   I
  黒色 I　　　　　  黒色 I　　　　　　  青色　　　  I  ジャワ　　　  Iオリオン・グレー Iヘリオス・イエロ　　　I  黒色 I　　　　　　  ジャワ　　  Iオリオン・グレー I　  ヘリオス　　  I
[941]
 NO.9051  I NO.9051  I NO.5076  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9051  I NO.1A26  I NO.7D43  I NO.1A36  I
[942]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A47  I NO.7E16  I NO.1A49  I .......  I .......  I .......  I .......  I
[943]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A41  I NO.7E04  I NO.1A40  I
[944]
 NO.9115  I NO.9115  I NO.5200  I NO.8407  I NO.1427  I NO.3550  I NO.7131  I NO.9115  I NO.1427  I NO.7131  I
[945]
 NO.9A82  I NO.9A82  I NO.5A96  I NO.1A44  I NO.7E14  I NO.1A45  I NO.9A82  I NO.1A44  I NO.7E14  I NO.1A45  I
[946]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I NO.9045  I NO.1A46  I NO.7E15  I NO.1A48  I
[947]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[948]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.8F86  I NO.7C75  I
[949]
 NO.9A91  I NO.9A91  I NO.5B04  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9A91  I NO.1A26  I NO.7D43  I NO.1A36  I
[950]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9045  I NO.8F86  I NO.7C75  I
[951]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[952]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A19  I NO.7D44  I NO.1A29  I
[953]
 NO.9115  I NO.9115  I NO.5200  I NO.1440  I NO.7225  I NO.1447  I NO.9115  I NO.1440  I NO.7225  I NO.1447  I
[954]
 NO.7118  I NO.7118  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I
[955]
 NO.9B00  I NO.9B00  I NO.5B12  I NO.1A66  I NO.7E53  I NO.1A67  I NO.9B00  I NO.1A66  I NO.7E53  I NO.1A67  I
[956]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A20  I NO.7E03  I NO.1A30  I
[957]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A42  I NO.7E12  I NO.1A43  I
=============================================================================================================I
 		001 LA
20 N 914128 004200
鉄板ビス
パネル / 左フロント・パーティション 		002 LA
30 A 129 680 00 80
カバー
フロント・ウォール右横

ﾌｯﾄﾉｰﾄ解説
[940]
=============================================================================================================I
コードおよび色番号:                                                                                                   I
    061   I    231   I    232   I    234   I    238   I    239   I    511   I    514   I    518   I    519   I
  黒色 I　　　　　  黒色 I　　　　　　  青色　　　  I  ジャワ　　　  Iオリオン・グレー Iヘリオス・イエロ　　　I  黒色 I　　　　　　  ジャワ　　  Iオリオン・グレー I　  ヘリオス　　  I
[941]
 NO.9051  I NO.9051  I NO.5076  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9051  I NO.1A26  I NO.7D43  I NO.1A36  I
[942]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A47  I NO.7E16  I NO.1A49  I .......  I .......  I .......  I .......  I
[943]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A41  I NO.7E04  I NO.1A40  I
[944]
 NO.9115  I NO.9115  I NO.5200  I NO.8407  I NO.1427  I NO.3550  I NO.7131  I NO.9115  I NO.1427  I NO.7131  I
[945]
 NO.9A82  I NO.9A82  I NO.5A96  I NO.1A44  I NO.7E14  I NO.1A45  I NO.9A82  I NO.1A44  I NO.7E14  I NO.1A45  I
[946]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I NO.9045  I NO.1A46  I NO.7E15  I NO.1A48  I
[947]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[948]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.8F86  I NO.7C75  I
[949]
 NO.9A91  I NO.9A91  I NO.5B04  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9A91  I NO.1A26  I NO.7D43  I NO.1A36  I
[950]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9045  I NO.8F86  I NO.7C75  I
[951]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[952]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A19  I NO.7D44  I NO.1A29  I
[953]
 NO.9115  I NO.9115  I NO.5200  I NO.1440  I NO.7225  I NO.1447  I NO.9115  I NO.1440  I NO.7225  I NO.1447  I
[954]
 NO.7118  I NO.7118  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I
[955]
 NO.9B00  I NO.9B00  I NO.5B12  I NO.1A66  I NO.7E53  I NO.1A67  I NO.9B00  I NO.1A66  I NO.7E53  I NO.1A67  I
[956]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A20  I NO.7E03  I NO.1A30  I
[957]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A42  I NO.7E12  I NO.1A43  I
=============================================================================================================I
 		001 LA
40 A 001 994 93 45
ヒューズ

これに変更 A 000 994 09 45 		-
40 A 000 994 09 45
プラグイン・ナット
ドア・ステップ・カバー / サイド・メンバ 		002
50 A 129 990 00 36
ボルト
ドア・ステップ・カバー / サイド・メンバ 		002
60 A 129 686 00 07
カバー
インナ・ドア・シル

ﾌｯﾄﾉｰﾄ解説
[940]
=============================================================================================================I
コードおよび色番号:                                                                                                   I
    061   I    231   I    232   I    234   I    238   I    239   I    511   I    514   I    518   I    519   I
  黒色 I　　　　　  黒色 I　　　　　　  青色　　　  I  ジャワ　　　  Iオリオン・グレー Iヘリオス・イエロ　　　I  黒色 I　　　　　　  ジャワ　　  Iオリオン・グレー I　  ヘリオス　　  I
[941]
 NO.9051  I NO.9051  I NO.5076  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9051  I NO.1A26  I NO.7D43  I NO.1A36  I
[942]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A47  I NO.7E16  I NO.1A49  I .......  I .......  I .......  I .......  I
[943]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A41  I NO.7E04  I NO.1A40  I
[944]
 NO.9115  I NO.9115  I NO.5200  I NO.8407  I NO.1427  I NO.3550  I NO.7131  I NO.9115  I NO.1427  I NO.7131  I
[945]
 NO.9A82  I NO.9A82  I NO.5A96  I NO.1A44  I NO.7E14  I NO.1A45  I NO.9A82  I NO.1A44  I NO.7E14  I NO.1A45  I
[946]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I NO.9045  I NO.1A46  I NO.7E15  I NO.1A48  I
[947]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[948]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.8F86  I NO.7C75  I
[949]
 NO.9A91  I NO.9A91  I NO.5B04  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9A91  I NO.1A26  I NO.7D43  I NO.1A36  I
[950]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9045  I NO.8F86  I NO.7C75  I
[951]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[952]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A19  I NO.7D44  I NO.1A29  I
[953]
 NO.9115  I NO.9115  I NO.5200  I NO.1440  I NO.7225  I NO.1447  I NO.9115  I NO.1440  I NO.7225  I NO.1447  I
[954]
 NO.7118  I NO.7118  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I
[955]
 NO.9B00  I NO.9B00  I NO.5B12  I NO.1A66  I NO.7E53  I NO.1A67  I NO.9B00  I NO.1A66  I NO.7E53  I NO.1A67  I
[956]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A20  I NO.7E03  I NO.1A30  I
[957]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A42  I NO.7E12  I NO.1A43  I
=============================================================================================================I
 		002
70 A 126 990 02 92
スプレッド・リベット
インナ・ドア・シル

ﾌｯﾄﾉｰﾄ解説
[940]
=============================================================================================================I
コードおよび色番号:                                                                                                   I
    061   I    231   I    232   I    234   I    238   I    239   I    511   I    514   I    518   I    519   I
  黒色 I　　　　　  黒色 I　　　　　　  青色　　　  I  ジャワ　　　  Iオリオン・グレー Iヘリオス・イエロ　　　I  黒色 I　　　　　　  ジャワ　　  Iオリオン・グレー I　  ヘリオス　　  I
[941]
 NO.9051  I NO.9051  I NO.5076  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9051  I NO.1A26  I NO.7D43  I NO.1A36  I
[942]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A47  I NO.7E16  I NO.1A49  I .......  I .......  I .......  I .......  I
[943]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A41  I NO.7E04  I NO.1A40  I
[944]
 NO.9115  I NO.9115  I NO.5200  I NO.8407  I NO.1427  I NO.3550  I NO.7131  I NO.9115  I NO.1427  I NO.7131  I
[945]
 NO.9A82  I NO.9A82  I NO.5A96  I NO.1A44  I NO.7E14  I NO.1A45  I NO.9A82  I NO.1A44  I NO.7E14  I NO.1A45  I
[946]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I NO.9045  I NO.1A46  I NO.7E15  I NO.1A48  I
[947]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[948]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.8F86  I NO.7C75  I
[949]
 NO.9A91  I NO.9A91  I NO.5B04  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9A91  I NO.1A26  I NO.7D43  I NO.1A36  I
[950]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9045  I NO.8F86  I NO.7C75  I
[951]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[952]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A19  I NO.7D44  I NO.1A29  I
[953]
 NO.9115  I NO.9115  I NO.5200  I NO.1440  I NO.7225  I NO.1447  I NO.9115  I NO.1440  I NO.7225  I NO.1447  I
[954]
 NO.7118  I NO.7118  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I
[955]
 NO.9B00  I NO.9B00  I NO.5B12  I NO.1A66  I NO.7E53  I NO.1A67  I NO.9B00  I NO.1A66  I NO.7E53  I NO.1A67  I
[956]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A20  I NO.7E03  I NO.1A30  I
[957]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A42  I NO.7E12  I NO.1A43  I
=============================================================================================================I
 		002
80 A 129 680 09 40
ライニング
運転席およびリヤ・フロア、左
VELOURS

ﾌｯﾄﾉｰﾄ解説
[940]
=============================================================================================================I
コードおよび色番号:                                                                                                   I
    061   I    231   I    232   I    234   I    238   I    239   I    511   I    514   I    518   I    519   I
  黒色 I　　　　　  黒色 I　　　　　　  青色　　　  I  ジャワ　　　  Iオリオン・グレー Iヘリオス・イエロ　　　I  黒色 I　　　　　　  ジャワ　　  Iオリオン・グレー I　  ヘリオス　　  I
[941]
 NO.9051  I NO.9051  I NO.5076  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9051  I NO.1A26  I NO.7D43  I NO.1A36  I
[942]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A47  I NO.7E16  I NO.1A49  I .......  I .......  I .......  I .......  I
[943]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A41  I NO.7E04  I NO.1A40  I
[944]
 NO.9115  I NO.9115  I NO.5200  I NO.8407  I NO.1427  I NO.3550  I NO.7131  I NO.9115  I NO.1427  I NO.7131  I
[945]
 NO.9A82  I NO.9A82  I NO.5A96  I NO.1A44  I NO.7E14  I NO.1A45  I NO.9A82  I NO.1A44  I NO.7E14  I NO.1A45  I
[946]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I NO.9045  I NO.1A46  I NO.7E15  I NO.1A48  I
[947]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[948]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.8F86  I NO.7C75  I
[949]
 NO.9A91  I NO.9A91  I NO.5B04  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9A91  I NO.1A26  I NO.7D43  I NO.1A36  I
[950]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9045  I NO.8F86  I NO.7C75  I
[951]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[952]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A19  I NO.7D44  I NO.1A29  I
[953]
 NO.9115  I NO.9115  I NO.5200  I NO.1440  I NO.7225  I NO.1447  I NO.9115  I NO.1440  I NO.7225  I NO.1447  I
[954]
 NO.7118  I NO.7118  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I
[955]
 NO.9B00  I NO.9B00  I NO.5B12  I NO.1A66  I NO.7E53  I NO.1A67  I NO.9B00  I NO.1A66  I NO.7E53  I NO.1A67  I
[956]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A20  I NO.7E03  I NO.1A30  I
[957]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A42  I NO.7E12  I NO.1A43  I
=============================================================================================================I
 		001 LA
90 A 129 680 22 40
ライニング
運転席およびリヤ・フロア、右
VELOURS

ﾌｯﾄﾉｰﾄ解説
[940]
=============================================================================================================I
コードおよび色番号:                                                                                                   I
    061   I    231   I    232   I    234   I    238   I    239   I    511   I    514   I    518   I    519   I
  黒色 I　　　　　  黒色 I　　　　　　  青色　　　  I  ジャワ　　　  Iオリオン・グレー Iヘリオス・イエロ　　　I  黒色 I　　　　　　  ジャワ　　  Iオリオン・グレー I　  ヘリオス　　  I
[941]
 NO.9051  I NO.9051  I NO.5076  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9051  I NO.1A26  I NO.7D43  I NO.1A36  I
[942]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A47  I NO.7E16  I NO.1A49  I .......  I .......  I .......  I .......  I
[943]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A41  I NO.7E04  I NO.1A40  I
[944]
 NO.9115  I NO.9115  I NO.5200  I NO.8407  I NO.1427  I NO.3550  I NO.7131  I NO.9115  I NO.1427  I NO.7131  I
[945]
 NO.9A82  I NO.9A82  I NO.5A96  I NO.1A44  I NO.7E14  I NO.1A45  I NO.9A82  I NO.1A44  I NO.7E14  I NO.1A45  I
[946]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I NO.9045  I NO.1A46  I NO.7E15  I NO.1A48  I
[947]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[948]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.8F86  I NO.7C75  I
[949]
 NO.9A91  I NO.9A91  I NO.5B04  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9A91  I NO.1A26  I NO.7D43  I NO.1A36  I
[950]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9045  I NO.8F86  I NO.7C75  I
[951]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[952]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A19  I NO.7D44  I NO.1A29  I
[953]
 NO.9115  I NO.9115  I NO.5200  I NO.1440  I NO.7225  I NO.1447  I NO.9115  I NO.1440  I NO.7225  I NO.1447  I
[954]
 NO.7118  I NO.7118  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I
[955]
 NO.9B00  I NO.9B00  I NO.5B12  I NO.1A66  I NO.7E53  I NO.1A67  I NO.9B00  I NO.1A66  I NO.7E53  I NO.1A67  I
[956]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A20  I NO.7E03  I NO.1A30  I
[957]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A42  I NO.7E12  I NO.1A43  I
=============================================================================================================I
 		001 LA
100 A 210 814 00 07
収納ネット

ﾌｯﾄﾉｰﾄ解説
[940]
=============================================================================================================I
コードおよび色番号:                                                                                                   I
    061   I    231   I    232   I    234   I    238   I    239   I    511   I    514   I    518   I    519   I
  黒色 I　　　　　  黒色 I　　　　　　  青色　　　  I  ジャワ　　　  Iオリオン・グレー Iヘリオス・イエロ　　　I  黒色 I　　　　　　  ジャワ　　  Iオリオン・グレー I　  ヘリオス　　  I
[941]
 NO.9051  I NO.9051  I NO.5076  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9051  I NO.1A26  I NO.7D43  I NO.1A36  I
[942]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A47  I NO.7E16  I NO.1A49  I .......  I .......  I .......  I .......  I
[943]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A41  I NO.7E04  I NO.1A40  I
[944]
 NO.9115  I NO.9115  I NO.5200  I NO.8407  I NO.1427  I NO.3550  I NO.7131  I NO.9115  I NO.1427  I NO.7131  I
[945]
 NO.9A82  I NO.9A82  I NO.5A96  I NO.1A44  I NO.7E14  I NO.1A45  I NO.9A82  I NO.1A44  I NO.7E14  I NO.1A45  I
[946]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I NO.9045  I NO.1A46  I NO.7E15  I NO.1A48  I
[947]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[948]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.8F86  I NO.7C75  I
[949]
 NO.9A91  I NO.9A91  I NO.5B04  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9A91  I NO.1A26  I NO.7D43  I NO.1A36  I
[950]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9045  I NO.8F86  I NO.7C75  I
[951]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[952]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A19  I NO.7D44  I NO.1A29  I
[953]
 NO.9115  I NO.9115  I NO.5200  I NO.1440  I NO.7225  I NO.1447  I NO.9115  I NO.1440  I NO.7225  I NO.1447  I
[954]
 NO.7118  I NO.7118  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I
[955]
 NO.9B00  I NO.9B00  I NO.5B12  I NO.1A66  I NO.7E53  I NO.1A67  I NO.9B00  I NO.1A66  I NO.7E53  I NO.1A67  I
[956]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A20  I NO.7E03  I NO.1A30  I
[957]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A42  I NO.7E12  I NO.1A43  I
=============================================================================================================I
 		001
110 A 220 814 01 01
ホルダー

ﾌｯﾄﾉｰﾄ解説
[940]
=============================================================================================================I
コードおよび色番号:                                                                                                   I
    061   I    231   I    232   I    234   I    238   I    239   I    511   I    514   I    518   I    519   I
  黒色 I　　　　　  黒色 I　　　　　　  青色　　　  I  ジャワ　　　  Iオリオン・グレー Iヘリオス・イエロ　　　I  黒色 I　　　　　　  ジャワ　　  Iオリオン・グレー I　  ヘリオス　　  I
[941]
 NO.9051  I NO.9051  I NO.5076  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9051  I NO.1A26  I NO.7D43  I NO.1A36  I
[942]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A47  I NO.7E16  I NO.1A49  I .......  I .......  I .......  I .......  I
[943]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A41  I NO.7E04  I NO.1A40  I
[944]
 NO.9115  I NO.9115  I NO.5200  I NO.8407  I NO.1427  I NO.3550  I NO.7131  I NO.9115  I NO.1427  I NO.7131  I
[945]
 NO.9A82  I NO.9A82  I NO.5A96  I NO.1A44  I NO.7E14  I NO.1A45  I NO.9A82  I NO.1A44  I NO.7E14  I NO.1A45  I
[946]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I NO.9045  I NO.1A46  I NO.7E15  I NO.1A48  I
[947]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[948]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.8F86  I NO.7C75  I
[949]
 NO.9A91  I NO.9A91  I NO.5B04  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9A91  I NO.1A26  I NO.7D43  I NO.1A36  I
[950]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9045  I NO.8F86  I NO.7C75  I
[951]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[952]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A19  I NO.7D44  I NO.1A29  I
[953]
 NO.9115  I NO.9115  I NO.5200  I NO.1440  I NO.7225  I NO.1447  I NO.9115  I NO.1440  I NO.7225  I NO.1447  I
[954]
 NO.7118  I NO.7118  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I
[955]
 NO.9B00  I NO.9B00  I NO.5B12  I NO.1A66  I NO.7E53  I NO.1A67  I NO.9B00  I NO.1A66  I NO.7E53  I NO.1A67  I
[956]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A20  I NO.7E03  I NO.1A30  I
[957]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A42  I NO.7E12  I NO.1A43  I
=============================================================================================================I
 		005
120 A 001 988 71 81
プッシュ・ボタン
ファスナ / フロア・マット 		005
130 A 129 684 10 37
サポート
右レッグ・ルーム 		001 LA
140 A 003 990 02 51
ねじ込み式ナット 002
150 A 129 976 00 60
フットレスト 001 LA
160 A 001 988 14 81
プッシュ・ボタン
フット・レスト / ファイア・ウォール 		002 LA
170 A 129 680 01 35
レール
VELOURS

ﾌｯﾄﾉｰﾄ解説
[940]
=============================================================================================================I
コードおよび色番号:                                                                                                   I
    061   I    231   I    232   I    234   I    238   I    239   I    511   I    514   I    518   I    519   I
  黒色 I　　　　　  黒色 I　　　　　　  青色　　　  I  ジャワ　　　  Iオリオン・グレー Iヘリオス・イエロ　　　I  黒色 I　　　　　　  ジャワ　　  Iオリオン・グレー I　  ヘリオス　　  I
[941]
 NO.9051  I NO.9051  I NO.5076  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9051  I NO.1A26  I NO.7D43  I NO.1A36  I
[942]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A47  I NO.7E16  I NO.1A49  I .......  I .......  I .......  I .......  I
[943]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A41  I NO.7E04  I NO.1A40  I
[944]
 NO.9115  I NO.9115  I NO.5200  I NO.8407  I NO.1427  I NO.3550  I NO.7131  I NO.9115  I NO.1427  I NO.7131  I
[945]
 NO.9A82  I NO.9A82  I NO.5A96  I NO.1A44  I NO.7E14  I NO.1A45  I NO.9A82  I NO.1A44  I NO.7E14  I NO.1A45  I
[946]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I NO.9045  I NO.1A46  I NO.7E15  I NO.1A48  I
[947]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[948]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.8F86  I NO.7C75  I
[949]
 NO.9A91  I NO.9A91  I NO.5B04  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9A91  I NO.1A26  I NO.7D43  I NO.1A36  I
[950]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9045  I NO.8F86  I NO.7C75  I
[951]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[952]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A19  I NO.7D44  I NO.1A29  I
[953]
 NO.9115  I NO.9115  I NO.5200  I NO.1440  I NO.7225  I NO.1447  I NO.9115  I NO.1440  I NO.7225  I NO.1447  I
[954]
 NO.7118  I NO.7118  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I
[955]
 NO.9B00  I NO.9B00  I NO.5B12  I NO.1A66  I NO.7E53  I NO.1A67  I NO.9B00  I NO.1A66  I NO.7E53  I NO.1A67  I
[956]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A20  I NO.7E03  I NO.1A30  I
[957]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A42  I NO.7E12  I NO.1A43  I
=============================================================================================================I
 		001
170 A 129 680 02 35
レール
VELOURS

ﾌｯﾄﾉｰﾄ解説
[940]
=============================================================================================================I
コードおよび色番号:                                                                                                   I
    061   I    231   I    232   I    234   I    238   I    239   I    511   I    514   I    518   I    519   I
  黒色 I　　　　　  黒色 I　　　　　　  青色　　　  I  ジャワ　　　  Iオリオン・グレー Iヘリオス・イエロ　　　I  黒色 I　　　　　　  ジャワ　　  Iオリオン・グレー I　  ヘリオス　　  I
[941]
 NO.9051  I NO.9051  I NO.5076  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9051  I NO.1A26  I NO.7D43  I NO.1A36  I
[942]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A47  I NO.7E16  I NO.1A49  I .......  I .......  I .......  I .......  I
[943]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A41  I NO.7E04  I NO.1A40  I
[944]
 NO.9115  I NO.9115  I NO.5200  I NO.8407  I NO.1427  I NO.3550  I NO.7131  I NO.9115  I NO.1427  I NO.7131  I
[945]
 NO.9A82  I NO.9A82  I NO.5A96  I NO.1A44  I NO.7E14  I NO.1A45  I NO.9A82  I NO.1A44  I NO.7E14  I NO.1A45  I
[946]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I NO.9045  I NO.1A46  I NO.7E15  I NO.1A48  I
[947]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[948]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.8F86  I NO.7C75  I
[949]
 NO.9A91  I NO.9A91  I NO.5B04  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9A91  I NO.1A26  I NO.7D43  I NO.1A36  I
[950]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9045  I NO.8F86  I NO.7C75  I
[951]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[952]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A19  I NO.7D44  I NO.1A29  I
[953]
 NO.9115  I NO.9115  I NO.5200  I NO.1440  I NO.7225  I NO.1447  I NO.9115  I NO.1440  I NO.7225  I NO.1447  I
[954]
 NO.7118  I NO.7118  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I
[955]
 NO.9B00  I NO.9B00  I NO.5B12  I NO.1A66  I NO.7E53  I NO.1A67  I NO.9B00  I NO.1A66  I NO.7E53  I NO.1A67  I
[956]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A20  I NO.7E03  I NO.1A30  I
[957]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A42  I NO.7E12  I NO.1A43  I
=============================================================================================================I
 		001
180 A 129 988 03 78
クリップ
ドア・ステップ・カバー / サイド・メンバ 		010
190 A 129 680 03 35
レール
アプローチ、左、外側

ﾌｯﾄﾉｰﾄ解説
[940]
=============================================================================================================I
コードおよび色番号:                                                                                                   I
    061   I    231   I    232   I    234   I    238   I    239   I    511   I    514   I    518   I    519   I
  黒色 I　　　　　  黒色 I　　　　　　  青色　　　  I  ジャワ　　　  Iオリオン・グレー Iヘリオス・イエロ　　　I  黒色 I　　　　　　  ジャワ　　  Iオリオン・グレー I　  ヘリオス　　  I
[941]
 NO.9051  I NO.9051  I NO.5076  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9051  I NO.1A26  I NO.7D43  I NO.1A36  I
[942]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A47  I NO.7E16  I NO.1A49  I .......  I .......  I .......  I .......  I
[943]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A41  I NO.7E04  I NO.1A40  I
[944]
 NO.9115  I NO.9115  I NO.5200  I NO.8407  I NO.1427  I NO.3550  I NO.7131  I NO.9115  I NO.1427  I NO.7131  I
[945]
 NO.9A82  I NO.9A82  I NO.5A96  I NO.1A44  I NO.7E14  I NO.1A45  I NO.9A82  I NO.1A44  I NO.7E14  I NO.1A45  I
[946]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I NO.9045  I NO.1A46  I NO.7E15  I NO.1A48  I
[947]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[948]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.8F86  I NO.7C75  I
[949]
 NO.9A91  I NO.9A91  I NO.5B04  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9A91  I NO.1A26  I NO.7D43  I NO.1A36  I
[950]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9045  I NO.8F86  I NO.7C75  I
[951]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[952]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A19  I NO.7D44  I NO.1A29  I
[953]
 NO.9115  I NO.9115  I NO.5200  I NO.1440  I NO.7225  I NO.1447  I NO.9115  I NO.1440  I NO.7225  I NO.1447  I
[954]
 NO.7118  I NO.7118  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I
[955]
 NO.9B00  I NO.9B00  I NO.5B12  I NO.1A66  I NO.7E53  I NO.1A67  I NO.9B00  I NO.1A66  I NO.7E53  I NO.1A67  I
[956]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A20  I NO.7E03  I NO.1A30  I
[957]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A42  I NO.7E12  I NO.1A43  I
=============================================================================================================I
 		001
190 A 129 680 11 35
カバー
アプローチ、左、外側
CodeBInformation - ｺｰﾄﾞ･ｲﾝﾌｫﾒｰｼｮﾝ: (P28)
ｺｰﾄﾞ日付指定名称
[P28]19991015スペシャル・モデル、ECE SL エディション
 		001
190 A 129 680 04 35
レール
アプローチ、右、外側

ﾌｯﾄﾉｰﾄ解説
[940]
=============================================================================================================I
コードおよび色番号:                                                                                                   I
    061   I    231   I    232   I    234   I    238   I    239   I    511   I    514   I    518   I    519   I
  黒色 I　　　　　  黒色 I　　　　　　  青色　　　  I  ジャワ　　　  Iオリオン・グレー Iヘリオス・イエロ　　　I  黒色 I　　　　　　  ジャワ　　  Iオリオン・グレー I　  ヘリオス　　  I
[941]
 NO.9051  I NO.9051  I NO.5076  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9051  I NO.1A26  I NO.7D43  I NO.1A36  I
[942]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A47  I NO.7E16  I NO.1A49  I .......  I .......  I .......  I .......  I
[943]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A41  I NO.7E04  I NO.1A40  I
[944]
 NO.9115  I NO.9115  I NO.5200  I NO.8407  I NO.1427  I NO.3550  I NO.7131  I NO.9115  I NO.1427  I NO.7131  I
[945]
 NO.9A82  I NO.9A82  I NO.5A96  I NO.1A44  I NO.7E14  I NO.1A45  I NO.9A82  I NO.1A44  I NO.7E14  I NO.1A45  I
[946]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I NO.9045  I NO.1A46  I NO.7E15  I NO.1A48  I
[947]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[948]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.8F86  I NO.7C75  I
[949]
 NO.9A91  I NO.9A91  I NO.5B04  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9A91  I NO.1A26  I NO.7D43  I NO.1A36  I
[950]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9045  I NO.8F86  I NO.7C75  I
[951]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[952]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A19  I NO.7D44  I NO.1A29  I
[953]
 NO.9115  I NO.9115  I NO.5200  I NO.1440  I NO.7225  I NO.1447  I NO.9115  I NO.1440  I NO.7225  I NO.1447  I
[954]
 NO.7118  I NO.7118  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I
[955]
 NO.9B00  I NO.9B00  I NO.5B12  I NO.1A66  I NO.7E53  I NO.1A67  I NO.9B00  I NO.1A66  I NO.7E53  I NO.1A67  I
[956]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A20  I NO.7E03  I NO.1A30  I
[957]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A42  I NO.7E12  I NO.1A43  I
=============================================================================================================I
 		001
190 A 129 680 12 35
カバー
アプローチ、右、外側
CodeBInformation - ｺｰﾄﾞ･ｲﾝﾌｫﾒｰｼｮﾝ: (P28)
ｺｰﾄﾞ日付指定名称
[P28]19991015スペシャル・モデル、ECE SL エディション
 		001
200 A 129 686 01 07
カバー
左リヤ・サイド・メンバ 		001
200 A 129 686 02 07
カバー
右リヤ・サイド・メンバ 		001
210 A 129 680 31 40
TS ライニング
SL-EDITION

ﾌｯﾄﾉｰﾄ解説
[962]
 NO.7F89
CodeBInformation - ｺｰﾄﾞ･ｲﾝﾌｫﾒｰｼｮﾝ: P28
ｺｰﾄﾞ日付指定名称
[P28]19991015スペシャル・モデル、ECE SL エディション
 		001
220 A 129 684 05 09
ライニング
左リヤ・クロス・メンバ
VELOURS

ﾌｯﾄﾉｰﾄ解説
[940]
=============================================================================================================I
コードおよび色番号:                                                                                                   I
    061   I    231   I    232   I    234   I    238   I    239   I    511   I    514   I    518   I    519   I
  黒色 I　　　　　  黒色 I　　　　　　  青色　　　  I  ジャワ　　　  Iオリオン・グレー Iヘリオス・イエロ　　　I  黒色 I　　　　　　  ジャワ　　  Iオリオン・グレー I　  ヘリオス　　  I
[941]
 NO.9051  I NO.9051  I NO.5076  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9051  I NO.1A26  I NO.7D43  I NO.1A36  I
[942]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A47  I NO.7E16  I NO.1A49  I .......  I .......  I .......  I .......  I
[943]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A41  I NO.7E04  I NO.1A40  I
[944]
 NO.9115  I NO.9115  I NO.5200  I NO.8407  I NO.1427  I NO.3550  I NO.7131  I NO.9115  I NO.1427  I NO.7131  I
[945]
 NO.9A82  I NO.9A82  I NO.5A96  I NO.1A44  I NO.7E14  I NO.1A45  I NO.9A82  I NO.1A44  I NO.7E14  I NO.1A45  I
[946]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I NO.9045  I NO.1A46  I NO.7E15  I NO.1A48  I
[947]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[948]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.8F86  I NO.7C75  I
[949]
 NO.9A91  I NO.9A91  I NO.5B04  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9A91  I NO.1A26  I NO.7D43  I NO.1A36  I
[950]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9045  I NO.8F86  I NO.7C75  I
[951]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[952]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A19  I NO.7D44  I NO.1A29  I
[953]
 NO.9115  I NO.9115  I NO.5200  I NO.1440  I NO.7225  I NO.1447  I NO.9115  I NO.1440  I NO.7225  I NO.1447  I
[954]
 NO.7118  I NO.7118  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I
[955]
 NO.9B00  I NO.9B00  I NO.5B12  I NO.1A66  I NO.7E53  I NO.1A67  I NO.9B00  I NO.1A66  I NO.7E53  I NO.1A67  I
[956]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A20  I NO.7E03  I NO.1A30  I
[957]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A42  I NO.7E12  I NO.1A43  I
=============================================================================================================I
 		001
230 A 129 684 08 09
ライニング
右リヤ・クロス・メンバ
VELOURS

ﾌｯﾄﾉｰﾄ解説
[940]
=============================================================================================================I
コードおよび色番号:                                                                                                   I
    061   I    231   I    232   I    234   I    238   I    239   I    511   I    514   I    518   I    519   I
  黒色 I　　　　　  黒色 I　　　　　　  青色　　　  I  ジャワ　　　  Iオリオン・グレー Iヘリオス・イエロ　　　I  黒色 I　　　　　　  ジャワ　　  Iオリオン・グレー I　  ヘリオス　　  I
[941]
 NO.9051  I NO.9051  I NO.5076  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9051  I NO.1A26  I NO.7D43  I NO.1A36  I
[942]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A47  I NO.7E16  I NO.1A49  I .......  I .......  I .......  I .......  I
[943]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A41  I NO.7E04  I NO.1A40  I
[944]
 NO.9115  I NO.9115  I NO.5200  I NO.8407  I NO.1427  I NO.3550  I NO.7131  I NO.9115  I NO.1427  I NO.7131  I
[945]
 NO.9A82  I NO.9A82  I NO.5A96  I NO.1A44  I NO.7E14  I NO.1A45  I NO.9A82  I NO.1A44  I NO.7E14  I NO.1A45  I
[946]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I NO.9045  I NO.1A46  I NO.7E15  I NO.1A48  I
[947]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[948]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.8F86  I NO.7C75  I
[949]
 NO.9A91  I NO.9A91  I NO.5B04  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9A91  I NO.1A26  I NO.7D43  I NO.1A36  I
[950]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9045  I NO.8F86  I NO.7C75  I
[951]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[952]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A19  I NO.7D44  I NO.1A29  I
[953]
 NO.9115  I NO.9115  I NO.5200  I NO.1440  I NO.7225  I NO.1447  I NO.9115  I NO.1440  I NO.7225  I NO.1447  I
[954]
 NO.7118  I NO.7118  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I
[955]
 NO.9B00  I NO.9B00  I NO.5B12  I NO.1A66  I NO.7E53  I NO.1A67  I NO.9B00  I NO.1A66  I NO.7E53  I NO.1A67  I
[956]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A20  I NO.7E03  I NO.1A30  I
[957]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A42  I NO.7E12  I NO.1A43  I
=============================================================================================================I
 		001
240 A 001 997 86 86
プラグ
ライニング / クロス・メンバ 		004
250 A 129 684 06 09
ライニング
フロア、折りたたみシート下

ﾌｯﾄﾉｰﾄ解説
[960]
 NO.7109
 		001
250 A 129 684 10 09
ライニング
フロア、折りたたみシート下

ﾌｯﾄﾉｰﾄ解説
[960]
 NO.7109
CodeBInformation - ｺｰﾄﾞ･ｲﾝﾌｫﾒｰｼｮﾝ: 810
ｺｰﾄﾞ日付指定名称
[810]19951002サウンド・システム
 		001
270 A 129 680 14 91
グローブ・ボックス
リヤ・ラゲッジ・トレイ・カバー

ﾌｯﾄﾉｰﾄ解説
[940]
=============================================================================================================I
コードおよび色番号:                                                                                                   I
    061   I    231   I    232   I    234   I    238   I    239   I    511   I    514   I    518   I    519   I
  黒色 I　　　　　  黒色 I　　　　　　  青色　　　  I  ジャワ　　　  Iオリオン・グレー Iヘリオス・イエロ　　　I  黒色 I　　　　　　  ジャワ　　  Iオリオン・グレー I　  ヘリオス　　  I
[941]
 NO.9051  I NO.9051  I NO.5076  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9051  I NO.1A26  I NO.7D43  I NO.1A36  I
[942]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A47  I NO.7E16  I NO.1A49  I .......  I .......  I .......  I .......  I
[943]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A41  I NO.7E04  I NO.1A40  I
[944]
 NO.9115  I NO.9115  I NO.5200  I NO.8407  I NO.1427  I NO.3550  I NO.7131  I NO.9115  I NO.1427  I NO.7131  I
[945]
 NO.9A82  I NO.9A82  I NO.5A96  I NO.1A44  I NO.7E14  I NO.1A45  I NO.9A82  I NO.1A44  I NO.7E14  I NO.1A45  I
[946]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I NO.9045  I NO.1A46  I NO.7E15  I NO.1A48  I
[947]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[948]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.8F86  I NO.7C75  I
[949]
 NO.9A91  I NO.9A91  I NO.5B04  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9A91  I NO.1A26  I NO.7D43  I NO.1A36  I
[950]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9045  I NO.8F86  I NO.7C75  I
[951]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[952]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A19  I NO.7D44  I NO.1A29  I
[953]
 NO.9115  I NO.9115  I NO.5200  I NO.1440  I NO.7225  I NO.1447  I NO.9115  I NO.1440  I NO.7225  I NO.1447  I
[954]
 NO.7118  I NO.7118  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I
[955]
 NO.9B00  I NO.9B00  I NO.5B12  I NO.1A66  I NO.7E53  I NO.1A67  I NO.9B00  I NO.1A66  I NO.7E53  I NO.1A67  I
[956]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A20  I NO.7E03  I NO.1A30  I
[957]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A42  I NO.7E12  I NO.1A43  I
=============================================================================================================I
 		001
280 A 129 680 07 84
シール・キャップ
荷物用トレイ、左リヤ 		001
280 A 129 680 08 84
シール・キャップ
荷物用トレイ、右リヤ 		001
290 N 007997 003028
ウッド・ボルト
3X12 		008
300 A 129 684 01 79
グリップ・リセス
左

ﾌｯﾄﾉｰﾄ解説
[940]
=============================================================================================================I
コードおよび色番号:                                                                                                   I
    061   I    231   I    232   I    234   I    238   I    239   I    511   I    514   I    518   I    519   I
  黒色 I　　　　　  黒色 I　　　　　　  青色　　　  I  ジャワ　　　  Iオリオン・グレー Iヘリオス・イエロ　　　I  黒色 I　　　　　　  ジャワ　　  Iオリオン・グレー I　  ヘリオス　　  I
[941]
 NO.9051  I NO.9051  I NO.5076  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9051  I NO.1A26  I NO.7D43  I NO.1A36  I
[942]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A47  I NO.7E16  I NO.1A49  I .......  I .......  I .......  I .......  I
[943]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A41  I NO.7E04  I NO.1A40  I
[944]
 NO.9115  I NO.9115  I NO.5200  I NO.8407  I NO.1427  I NO.3550  I NO.7131  I NO.9115  I NO.1427  I NO.7131  I
[945]
 NO.9A82  I NO.9A82  I NO.5A96  I NO.1A44  I NO.7E14  I NO.1A45  I NO.9A82  I NO.1A44  I NO.7E14  I NO.1A45  I
[946]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I NO.9045  I NO.1A46  I NO.7E15  I NO.1A48  I
[947]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[948]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.8F86  I NO.7C75  I
[949]
 NO.9A91  I NO.9A91  I NO.5B04  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9A91  I NO.1A26  I NO.7D43  I NO.1A36  I
[950]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9045  I NO.8F86  I NO.7C75  I
[951]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[952]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A19  I NO.7D44  I NO.1A29  I
[953]
 NO.9115  I NO.9115  I NO.5200  I NO.1440  I NO.7225  I NO.1447  I NO.9115  I NO.1440  I NO.7225  I NO.1447  I
[954]
 NO.7118  I NO.7118  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I
[955]
 NO.9B00  I NO.9B00  I NO.5B12  I NO.1A66  I NO.7E53  I NO.1A67  I NO.9B00  I NO.1A66  I NO.7E53  I NO.1A67  I
[956]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A20  I NO.7E03  I NO.1A30  I
[957]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A42  I NO.7E12  I NO.1A43  I
=============================================================================================================I
 		001
300 A 129 684 02 79
グリップ・リセス
右

ﾌｯﾄﾉｰﾄ解説
[940]
=============================================================================================================I
コードおよび色番号:                                                                                                   I
    061   I    231   I    232   I    234   I    238   I    239   I    511   I    514   I    518   I    519   I
  黒色 I　　　　　  黒色 I　　　　　　  青色　　　  I  ジャワ　　　  Iオリオン・グレー Iヘリオス・イエロ　　　I  黒色 I　　　　　　  ジャワ　　  Iオリオン・グレー I　  ヘリオス　　  I
[941]
 NO.9051  I NO.9051  I NO.5076  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9051  I NO.1A26  I NO.7D43  I NO.1A36  I
[942]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A47  I NO.7E16  I NO.1A49  I .......  I .......  I .......  I .......  I
[943]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A41  I NO.7E04  I NO.1A40  I
[944]
 NO.9115  I NO.9115  I NO.5200  I NO.8407  I NO.1427  I NO.3550  I NO.7131  I NO.9115  I NO.1427  I NO.7131  I
[945]
 NO.9A82  I NO.9A82  I NO.5A96  I NO.1A44  I NO.7E14  I NO.1A45  I NO.9A82  I NO.1A44  I NO.7E14  I NO.1A45  I
[946]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I NO.9045  I NO.1A46  I NO.7E15  I NO.1A48  I
[947]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[948]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.8F86  I NO.7C75  I
[949]
 NO.9A91  I NO.9A91  I NO.5B04  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9A91  I NO.1A26  I NO.7D43  I NO.1A36  I
[950]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9045  I NO.8F86  I NO.7C75  I
[951]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[952]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A19  I NO.7D44  I NO.1A29  I
[953]
 NO.9115  I NO.9115  I NO.5200  I NO.1440  I NO.7225  I NO.1447  I NO.9115  I NO.1440  I NO.7225  I NO.1447  I
[954]
 NO.7118  I NO.7118  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I
[955]
 NO.9B00  I NO.9B00  I NO.5B12  I NO.1A66  I NO.7E53  I NO.1A67  I NO.9B00  I NO.1A66  I NO.7E53  I NO.1A67  I
[956]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A20  I NO.7E03  I NO.1A30  I
[957]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A42  I NO.7E12  I NO.1A43  I
=============================================================================================================I
 		001
310 N 007997 003015
ウッド・ボルト
3X10 		006
320 A 129 684 01 69
ボタン
左 		001
320 A 129 684 02 69
ボタン
右 		001
330 A 116 993 51 01
スプリング 002
340 A 129 684 00 31
コンソール
リヤ・クロス・メンバ 		002
350 N 007976 004205
鉄板ビス
クロス・メンバに取り付けるコンソール
4.8X13 		004
350 N 007976 004205
鉄板ビス
フレーム / カバー
4.8X13 		002
360 N 007996 006009
ウッド・ボルト
フレーム / カバー
5X35 		004
370 A 129 690 17 41
カバー
リヤ・サイド・パネル、左、 リヤ・シートの場合は適用外

ﾌｯﾄﾉｰﾄ解説
[940]
=============================================================================================================I
コードおよび色番号:                                                                                                   I
    061   I    231   I    232   I    234   I    238   I    239   I    511   I    514   I    518   I    519   I
  黒色 I　　　　　  黒色 I　　　　　　  青色　　　  I  ジャワ　　　  Iオリオン・グレー Iヘリオス・イエロ　　　I  黒色 I　　　　　　  ジャワ　　  Iオリオン・グレー I　  ヘリオス　　  I
[941]
 NO.9051  I NO.9051  I NO.5076  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9051  I NO.1A26  I NO.7D43  I NO.1A36  I
[942]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A47  I NO.7E16  I NO.1A49  I .......  I .......  I .......  I .......  I
[943]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A41  I NO.7E04  I NO.1A40  I
[944]
 NO.9115  I NO.9115  I NO.5200  I NO.8407  I NO.1427  I NO.3550  I NO.7131  I NO.9115  I NO.1427  I NO.7131  I
[945]
 NO.9A82  I NO.9A82  I NO.5A96  I NO.1A44  I NO.7E14  I NO.1A45  I NO.9A82  I NO.1A44  I NO.7E14  I NO.1A45  I
[946]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I NO.9045  I NO.1A46  I NO.7E15  I NO.1A48  I
[947]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[948]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.8F86  I NO.7C75  I
[949]
 NO.9A91  I NO.9A91  I NO.5B04  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9A91  I NO.1A26  I NO.7D43  I NO.1A36  I
[950]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9045  I NO.8F86  I NO.7C75  I
[951]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[952]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A19  I NO.7D44  I NO.1A29  I
[953]
 NO.9115  I NO.9115  I NO.5200  I NO.1440  I NO.7225  I NO.1447  I NO.9115  I NO.1440  I NO.7225  I NO.1447  I
[954]
 NO.7118  I NO.7118  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I
[955]
 NO.9B00  I NO.9B00  I NO.5B12  I NO.1A66  I NO.7E53  I NO.1A67  I NO.9B00  I NO.1A66  I NO.7E53  I NO.1A67  I
[956]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A20  I NO.7E03  I NO.1A30  I
[957]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A42  I NO.7E12  I NO.1A43  I
=============================================================================================================I
 		001
370 A 129 690 23 41
カバー
リヤ・サイド・パネル、左、 リヤ・シートの場合は適用外
MIT SOUNDSYSTEM

ﾌｯﾄﾉｰﾄ解説
[940]
=============================================================================================================I
コードおよび色番号:                                                                                                   I
    061   I    231   I    232   I    234   I    238   I    239   I    511   I    514   I    518   I    519   I
  黒色 I　　　　　  黒色 I　　　　　　  青色　　　  I  ジャワ　　　  Iオリオン・グレー Iヘリオス・イエロ　　　I  黒色 I　　　　　　  ジャワ　　  Iオリオン・グレー I　  ヘリオス　　  I
[941]
 NO.9051  I NO.9051  I NO.5076  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9051  I NO.1A26  I NO.7D43  I NO.1A36  I
[942]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A47  I NO.7E16  I NO.1A49  I .......  I .......  I .......  I .......  I
[943]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A41  I NO.7E04  I NO.1A40  I
[944]
 NO.9115  I NO.9115  I NO.5200  I NO.8407  I NO.1427  I NO.3550  I NO.7131  I NO.9115  I NO.1427  I NO.7131  I
[945]
 NO.9A82  I NO.9A82  I NO.5A96  I NO.1A44  I NO.7E14  I NO.1A45  I NO.9A82  I NO.1A44  I NO.7E14  I NO.1A45  I
[946]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I NO.9045  I NO.1A46  I NO.7E15  I NO.1A48  I
[947]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[948]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.8F86  I NO.7C75  I
[949]
 NO.9A91  I NO.9A91  I NO.5B04  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9A91  I NO.1A26  I NO.7D43  I NO.1A36  I
[950]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9045  I NO.8F86  I NO.7C75  I
[951]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[952]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A19  I NO.7D44  I NO.1A29  I
[953]
 NO.9115  I NO.9115  I NO.5200  I NO.1440  I NO.7225  I NO.1447  I NO.9115  I NO.1440  I NO.7225  I NO.1447  I
[954]
 NO.7118  I NO.7118  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I
[955]
 NO.9B00  I NO.9B00  I NO.5B12  I NO.1A66  I NO.7E53  I NO.1A67  I NO.9B00  I NO.1A66  I NO.7E53  I NO.1A67  I
[956]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A20  I NO.7E03  I NO.1A30  I
[957]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A42  I NO.7E12  I NO.1A43  I
=============================================================================================================I
 		001
380 A 129 690 18 41
カバー
リヤ・サイド・パネル、右、 リヤ・シートの場合は適用外

ﾌｯﾄﾉｰﾄ解説
[940]
=============================================================================================================I
コードおよび色番号:                                                                                                   I
    061   I    231   I    232   I    234   I    238   I    239   I    511   I    514   I    518   I    519   I
  黒色 I　　　　　  黒色 I　　　　　　  青色　　　  I  ジャワ　　　  Iオリオン・グレー Iヘリオス・イエロ　　　I  黒色 I　　　　　　  ジャワ　　  Iオリオン・グレー I　  ヘリオス　　  I
[941]
 NO.9051  I NO.9051  I NO.5076  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9051  I NO.1A26  I NO.7D43  I NO.1A36  I
[942]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A47  I NO.7E16  I NO.1A49  I .......  I .......  I .......  I .......  I
[943]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A41  I NO.7E04  I NO.1A40  I
[944]
 NO.9115  I NO.9115  I NO.5200  I NO.8407  I NO.1427  I NO.3550  I NO.7131  I NO.9115  I NO.1427  I NO.7131  I
[945]
 NO.9A82  I NO.9A82  I NO.5A96  I NO.1A44  I NO.7E14  I NO.1A45  I NO.9A82  I NO.1A44  I NO.7E14  I NO.1A45  I
[946]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I NO.9045  I NO.1A46  I NO.7E15  I NO.1A48  I
[947]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[948]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.8F86  I NO.7C75  I
[949]
 NO.9A91  I NO.9A91  I NO.5B04  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9A91  I NO.1A26  I NO.7D43  I NO.1A36  I
[950]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9045  I NO.8F86  I NO.7C75  I
[951]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[952]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A19  I NO.7D44  I NO.1A29  I
[953]
 NO.9115  I NO.9115  I NO.5200  I NO.1440  I NO.7225  I NO.1447  I NO.9115  I NO.1440  I NO.7225  I NO.1447  I
[954]
 NO.7118  I NO.7118  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I
[955]
 NO.9B00  I NO.9B00  I NO.5B12  I NO.1A66  I NO.7E53  I NO.1A67  I NO.9B00  I NO.1A66  I NO.7E53  I NO.1A67  I
[956]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A20  I NO.7E03  I NO.1A30  I
[957]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A42  I NO.7E12  I NO.1A43  I
=============================================================================================================I
 		001
380 A 129 690 24 41
カバー
リヤ・サイド・パネル、右、 リヤ・シートの場合は適用外
MIT SOUNDSYSTEM

ﾌｯﾄﾉｰﾄ解説
[940]
=============================================================================================================I
コードおよび色番号:                                                                                                   I
    061   I    231   I    232   I    234   I    238   I    239   I    511   I    514   I    518   I    519   I
  黒色 I　　　　　  黒色 I　　　　　　  青色　　　  I  ジャワ　　　  Iオリオン・グレー Iヘリオス・イエロ　　　I  黒色 I　　　　　　  ジャワ　　  Iオリオン・グレー I　  ヘリオス　　  I
[941]
 NO.9051  I NO.9051  I NO.5076  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9051  I NO.1A26  I NO.7D43  I NO.1A36  I
[942]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A47  I NO.7E16  I NO.1A49  I .......  I .......  I .......  I .......  I
[943]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A41  I NO.7E04  I NO.1A40  I
[944]
 NO.9115  I NO.9115  I NO.5200  I NO.8407  I NO.1427  I NO.3550  I NO.7131  I NO.9115  I NO.1427  I NO.7131  I
[945]
 NO.9A82  I NO.9A82  I NO.5A96  I NO.1A44  I NO.7E14  I NO.1A45  I NO.9A82  I NO.1A44  I NO.7E14  I NO.1A45  I
[946]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I NO.9045  I NO.1A46  I NO.7E15  I NO.1A48  I
[947]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[948]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.8F86  I NO.7C75  I
[949]
 NO.9A91  I NO.9A91  I NO.5B04  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9A91  I NO.1A26  I NO.7D43  I NO.1A36  I
[950]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9045  I NO.8F86  I NO.7C75  I
[951]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[952]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A19  I NO.7D44  I NO.1A29  I
[953]
 NO.9115  I NO.9115  I NO.5200  I NO.1440  I NO.7225  I NO.1447  I NO.9115  I NO.1440  I NO.7225  I NO.1447  I
[954]
 NO.7118  I NO.7118  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I
[955]
 NO.9B00  I NO.9B00  I NO.5B12  I NO.1A66  I NO.7E53  I NO.1A67  I NO.9B00  I NO.1A66  I NO.7E53  I NO.1A67  I
[956]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A20  I NO.7E03  I NO.1A30  I
[957]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A42  I NO.7E12  I NO.1A43  I
=============================================================================================================I
 		001
390 A 129 692 00 43
フック 004
400 A 006 988 57 78
クリップ
グリーン 		006
410 A 129 692 01 00
カバー
左ブラケットに

ﾌｯﾄﾉｰﾄ解説
[940]
=============================================================================================================I
コードおよび色番号:                                                                                                   I
    061   I    231   I    232   I    234   I    238   I    239   I    511   I    514   I    518   I    519   I
  黒色 I　　　　　  黒色 I　　　　　　  青色　　　  I  ジャワ　　　  Iオリオン・グレー Iヘリオス・イエロ　　　I  黒色 I　　　　　　  ジャワ　　  Iオリオン・グレー I　  ヘリオス　　  I
[941]
 NO.9051  I NO.9051  I NO.5076  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9051  I NO.1A26  I NO.7D43  I NO.1A36  I
[942]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A47  I NO.7E16  I NO.1A49  I .......  I .......  I .......  I .......  I
[943]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A41  I NO.7E04  I NO.1A40  I
[944]
 NO.9115  I NO.9115  I NO.5200  I NO.8407  I NO.1427  I NO.3550  I NO.7131  I NO.9115  I NO.1427  I NO.7131  I
[945]
 NO.9A82  I NO.9A82  I NO.5A96  I NO.1A44  I NO.7E14  I NO.1A45  I NO.9A82  I NO.1A44  I NO.7E14  I NO.1A45  I
[946]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I NO.9045  I NO.1A46  I NO.7E15  I NO.1A48  I
[947]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[948]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.8F86  I NO.7C75  I
[949]
 NO.9A91  I NO.9A91  I NO.5B04  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9A91  I NO.1A26  I NO.7D43  I NO.1A36  I
[950]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9045  I NO.8F86  I NO.7C75  I
[951]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[952]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A19  I NO.7D44  I NO.1A29  I
[953]
 NO.9115  I NO.9115  I NO.5200  I NO.1440  I NO.7225  I NO.1447  I NO.9115  I NO.1440  I NO.7225  I NO.1447  I
[954]
 NO.7118  I NO.7118  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I
[955]
 NO.9B00  I NO.9B00  I NO.5B12  I NO.1A66  I NO.7E53  I NO.1A67  I NO.9B00  I NO.1A66  I NO.7E53  I NO.1A67  I
[956]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A20  I NO.7E03  I NO.1A30  I
[957]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A42  I NO.7E12  I NO.1A43  I
=============================================================================================================I
 		001
410 A 129 692 02 00
カバー
右ブラケットに

ﾌｯﾄﾉｰﾄ解説
[940]
=============================================================================================================I
コードおよび色番号:                                                                                                   I
    061   I    231   I    232   I    234   I    238   I    239   I    511   I    514   I    518   I    519   I
  黒色 I　　　　　  黒色 I　　　　　　  青色　　　  I  ジャワ　　　  Iオリオン・グレー Iヘリオス・イエロ　　　I  黒色 I　　　　　　  ジャワ　　  Iオリオン・グレー I　  ヘリオス　　  I
[941]
 NO.9051  I NO.9051  I NO.5076  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9051  I NO.1A26  I NO.7D43  I NO.1A36  I
[942]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A47  I NO.7E16  I NO.1A49  I .......  I .......  I .......  I .......  I
[943]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A41  I NO.7E04  I NO.1A40  I
[944]
 NO.9115  I NO.9115  I NO.5200  I NO.8407  I NO.1427  I NO.3550  I NO.7131  I NO.9115  I NO.1427  I NO.7131  I
[945]
 NO.9A82  I NO.9A82  I NO.5A96  I NO.1A44  I NO.7E14  I NO.1A45  I NO.9A82  I NO.1A44  I NO.7E14  I NO.1A45  I
[946]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I NO.9045  I NO.1A46  I NO.7E15  I NO.1A48  I
[947]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[948]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.8F86  I NO.7C75  I
[949]
 NO.9A91  I NO.9A91  I NO.5B04  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9A91  I NO.1A26  I NO.7D43  I NO.1A36  I
[950]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9045  I NO.8F86  I NO.7C75  I
[951]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[952]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A19  I NO.7D44  I NO.1A29  I
[953]
 NO.9115  I NO.9115  I NO.5200  I NO.1440  I NO.7225  I NO.1447  I NO.9115  I NO.1440  I NO.7225  I NO.1447  I
[954]
 NO.7118  I NO.7118  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I
[955]
 NO.9B00  I NO.9B00  I NO.5B12  I NO.1A66  I NO.7E53  I NO.1A67  I NO.9B00  I NO.1A66  I NO.7E53  I NO.1A67  I
[956]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A20  I NO.7E03  I NO.1A30  I
[957]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A42  I NO.7E12  I NO.1A43  I
=============================================================================================================I
 		001
420 A 006 988 97 78
クリップ 006
430 A 000 984 25 22
シート・メタル・ナット 006
440 A 129 990 07 36
ボルト
リヤ・サイド・パーツ・パネル / B ピラー 		002
450 A 129 686 00 07
カバー
リヤ・サイド・パーツ・パネル / B ピラー

ﾌｯﾄﾉｰﾄ解説
[940]
=============================================================================================================I
コードおよび色番号:                                                                                                   I
    061   I    231   I    232   I    234   I    238   I    239   I    511   I    514   I    518   I    519   I
  黒色 I　　　　　  黒色 I　　　　　　  青色　　　  I  ジャワ　　　  Iオリオン・グレー Iヘリオス・イエロ　　　I  黒色 I　　　　　　  ジャワ　　  Iオリオン・グレー I　  ヘリオス　　  I
[941]
 NO.9051  I NO.9051  I NO.5076  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9051  I NO.1A26  I NO.7D43  I NO.1A36  I
[942]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A47  I NO.7E16  I NO.1A49  I .......  I .......  I .......  I .......  I
[943]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A41  I NO.7E04  I NO.1A40  I
[944]
 NO.9115  I NO.9115  I NO.5200  I NO.8407  I NO.1427  I NO.3550  I NO.7131  I NO.9115  I NO.1427  I NO.7131  I
[945]
 NO.9A82  I NO.9A82  I NO.5A96  I NO.1A44  I NO.7E14  I NO.1A45  I NO.9A82  I NO.1A44  I NO.7E14  I NO.1A45  I
[946]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I NO.9045  I NO.1A46  I NO.7E15  I NO.1A48  I
[947]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[948]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.8F86  I NO.7C75  I
[949]
 NO.9A91  I NO.9A91  I NO.5B04  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9A91  I NO.1A26  I NO.7D43  I NO.1A36  I
[950]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9045  I NO.8F86  I NO.7C75  I
[951]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[952]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A19  I NO.7D44  I NO.1A29  I
[953]
 NO.9115  I NO.9115  I NO.5200  I NO.1440  I NO.7225  I NO.1447  I NO.9115  I NO.1440  I NO.7225  I NO.1447  I
[954]
 NO.7118  I NO.7118  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I
[955]
 NO.9B00  I NO.9B00  I NO.5B12  I NO.1A66  I NO.7E53  I NO.1A67  I NO.9B00  I NO.1A66  I NO.7E53  I NO.1A67  I
[956]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A20  I NO.7E03  I NO.1A30  I
[957]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A42  I NO.7E12  I NO.1A43  I
=============================================================================================================I
 		002
460 A 001 994 93 45
ヒューズ

これに変更 A 000 994 09 45 		-
460 A 000 994 09 45
プラグイン・ナット
リヤ・サイド・パーツ・パネル / B ピラー 		002
470 A 129 690 01 14
フラップ
リヤ・ウインドウ・デフォッガ

ﾌｯﾄﾉｰﾄ解説
[940]
=============================================================================================================I
コードおよび色番号:                                                                                                   I
    061   I    231   I    232   I    234   I    238   I    239   I    511   I    514   I    518   I    519   I
  黒色 I　　　　　  黒色 I　　　　　　  青色　　　  I  ジャワ　　　  Iオリオン・グレー Iヘリオス・イエロ　　　I  黒色 I　　　　　　  ジャワ　　  Iオリオン・グレー I　  ヘリオス　　  I
[941]
 NO.9051  I NO.9051  I NO.5076  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9051  I NO.1A26  I NO.7D43  I NO.1A36  I
[942]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A47  I NO.7E16  I NO.1A49  I .......  I .......  I .......  I .......  I
[943]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A41  I NO.7E04  I NO.1A40  I
[944]
 NO.9115  I NO.9115  I NO.5200  I NO.8407  I NO.1427  I NO.3550  I NO.7131  I NO.9115  I NO.1427  I NO.7131  I
[945]
 NO.9A82  I NO.9A82  I NO.5A96  I NO.1A44  I NO.7E14  I NO.1A45  I NO.9A82  I NO.1A44  I NO.7E14  I NO.1A45  I
[946]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I NO.9045  I NO.1A46  I NO.7E15  I NO.1A48  I
[947]
 NO.9045  I NO.9045  I NO.5070  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[948]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.8F86  I NO.7C75  I
[949]
 NO.9A91  I NO.9A91  I NO.5B04  I NO.1A26  I NO.7D43  I NO.1A36  I NO.9A91  I NO.1A26  I NO.7D43  I NO.1A36  I
[950]
 .......  I .......  I .......  I .......  I .......  I .......  I .......  I NO.9045  I NO.8F86  I NO.7C75  I
[951]
 NO.9A77  I NO.9A77  I NO.5A92  I NO.1A46  I NO.7E15  I NO.1A48  I .......  I .......  I .......  I .......  I
[952]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9A84  I NO.1A19  I NO.7D44  I NO.1A29  I
[953]
 NO.9115  I NO.9115  I NO.5200  I NO.1440  I NO.7225  I NO.1447  I NO.9115  I NO.1440  I NO.7225  I NO.1447  I
[954]
 NO.7118  I NO.7118  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I NO.7118  I NO.1440  I NO.7225  I NO.1447  I
[955]
 NO.9B00  I NO.9B00  I NO.5B12  I NO.1A66  I NO.7E53  I NO.1A67  I NO.9B00  I NO.1A66  I NO.7E53  I NO.1A67  I
[956]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A20  I NO.7E03  I NO.1A30  I
[957]
 .......  I .......  I .......  I .......  I .......  I .......  I NO.9B97  I NO.1A42  I NO.7E12  I NO.1A43  I
=============================================================================================================I
 		001
480 A 129 690 41 30
カバー
左 		001
480 A 129 690 42 30
カバー
右 		001
490 A 129 693 01 36
スプリング
左 		001
490 A 129 693 02 36
スプリング
右 		001
500 N 914032 004303
ワッシャ付きボルト 006
510 N 000125 005317
ウインドウ

これに変更 N 000433 005304 		-
510 N 000433 005304
ウインドウ 006
520 A 140 994 10 45
ヒューズ 006
